Item# IME-8N

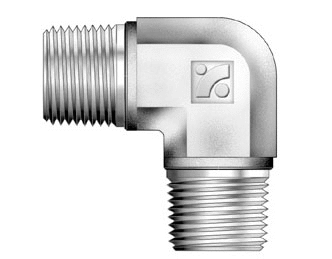

IME 1/2 in. Male National Pipe Taper (MNPT) Male Elbow

IME-8N
IME PIPE FITTING
IME Male Elbows - 2
Specifications
Part Number
IME-8N
Brand
Superlok®
End Type
National Pipe Taper (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Style
Instrumentation Thread Fittings
Description
IME 1/2 in. Male National Pipe Taper (MNPT) Male Elbow
End Size
44198
Dimensions
Dimension E
11.9 mm
Dimension H
20.6 mm
Dimension L
33.2 mm
Pressure Rating (Brass)
261 bar
3800 psig
Pressure [Max]
=--DELETED= psi
530 bar
7700 psig
Size
44198 in

Part#
