Item# IMT-8N

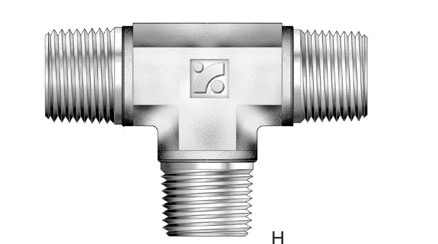

IMT 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee

Downloads
IMT-8N

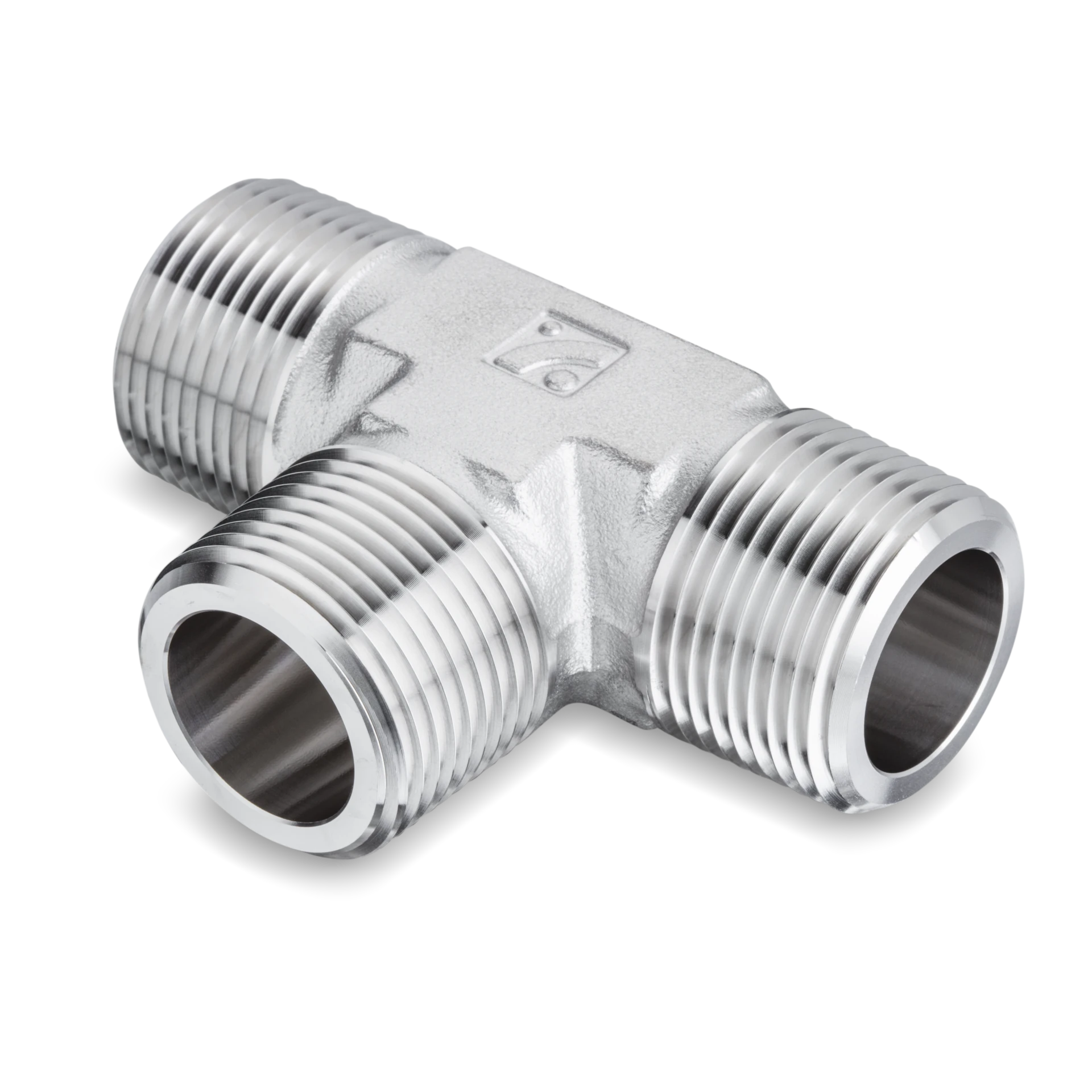

IMT PIPE FITTING
IMT Male Tees - 2
Specifications
Part Number
IMT-8N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IMT 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee
Size
44198

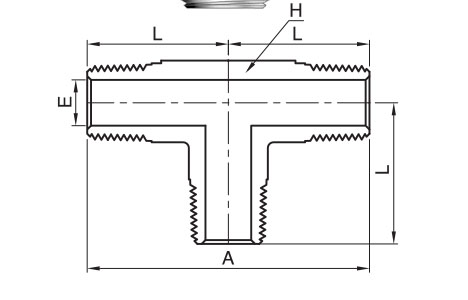

Dimensions
Dimension A
66.4 mm
Dimension E
11.9 mm
Dimension H
20.6 mm
Dimension L
33.2 mm
Pressure Rating (Brass)
261 bar
3800 psig
Pressure [Max]
530 bar
7700 psig
