Item# IRA 6-8N

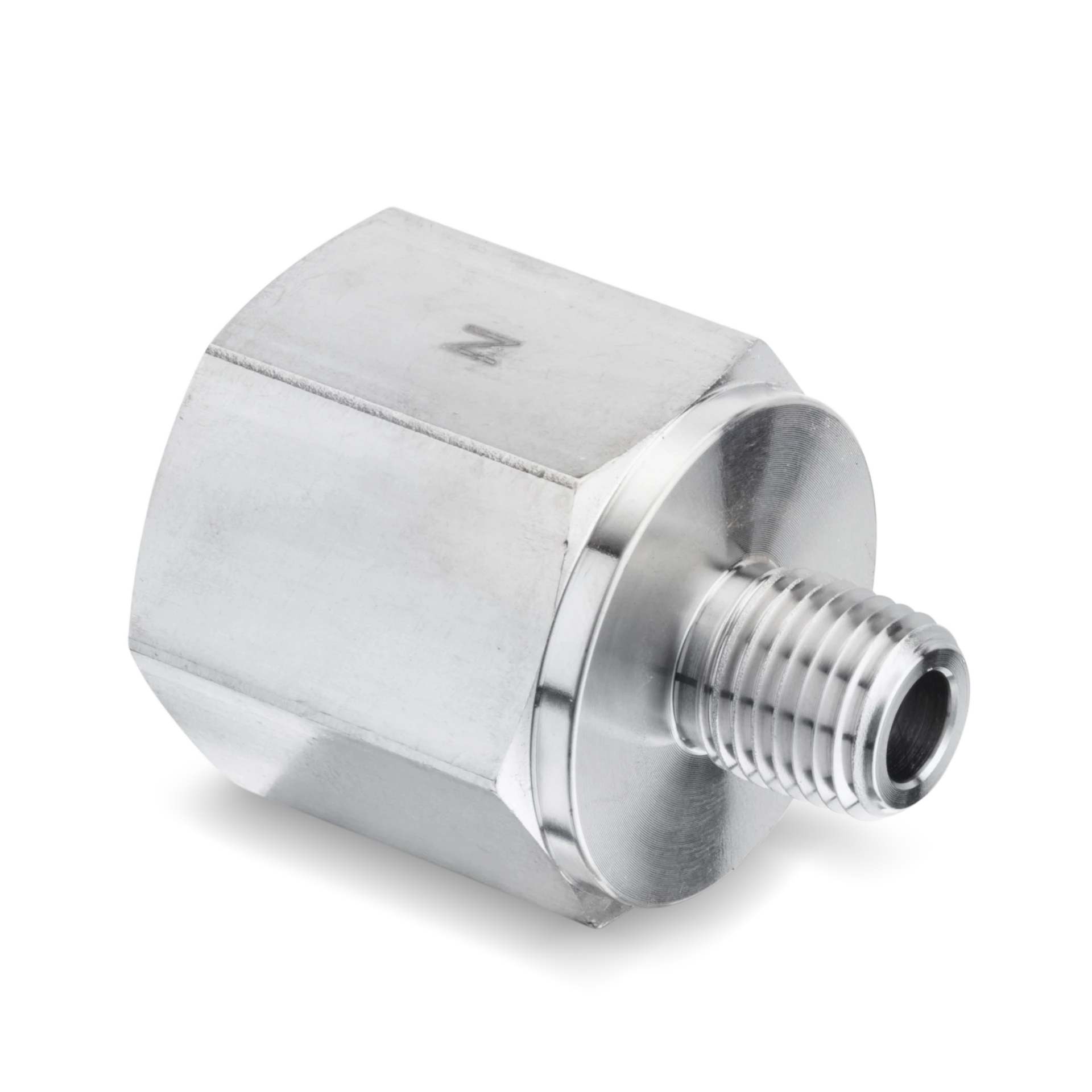

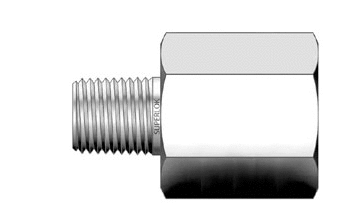

IRA 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter

IRA 6-8N
IRA PIPE FITTING
IRA Reducing Adapters - 2
Specifications
Part Number
IRA 6-8N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IRA 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter

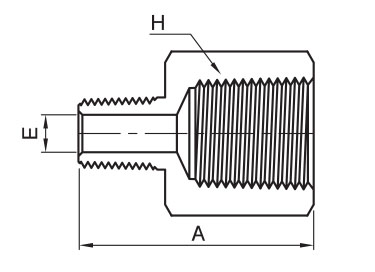

Dimensions
Dimension A
46.2 mm
Dimension E
9.6 mm
Dimension H
33.3 mm
Female Pipe Size
3/4 mm
Pressure Rating (Brass)
158 bar
2300 psig
Pressure [Max]
4600 bar
316 psig
Size
44263 mm
