Item# ISE-16N

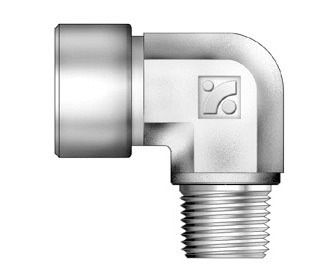

ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow

Downloads
ISE-16N
ISE PIPE FITTING
ISE Street Elbows - 2
Specifications
Part Number
ISE-16N
Brand
Superlok®
End Type
Female National Pipe Taper (NPT)
End Type 2
Male National Pipe Taper (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Style
Instrumentation Thread Fittings
Description
ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow
End Size
1
End Size 2
1
Dimensions
Dimension E
22.4 mm
Dimension H
42.9 mm
Dimension L
48.8 mm
Dimension S
49.2 mm
Pressure Rating (Brass)
179 bar
2600 psig
Pressure [Max]
=--DELETED= psi
365 bar
5300 psig
Size
1 in
