Item# JN-20T

JN 1-1/4 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut

JN-20T
Specifications
Part Number
JN-20T
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Thread Type
Unified Fine (UNF)/Unified Constant Pitch (UN)
Description
JN 1-1/4 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut
Thread Size
1 5/8 - 12

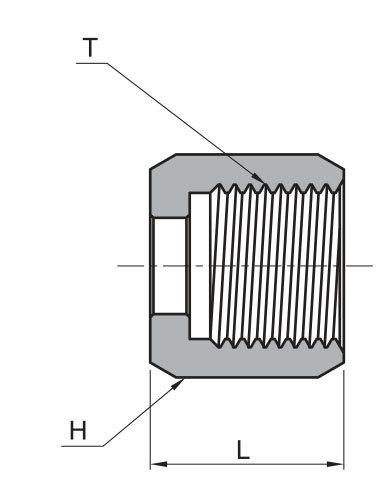

Dimensions
Dimension H (Hex)
50.8 mm
Dimension L
31.2 mm
Tube Outside Diameter D
1 1/4 in
32 mm
