Item# SBMC 6-4N

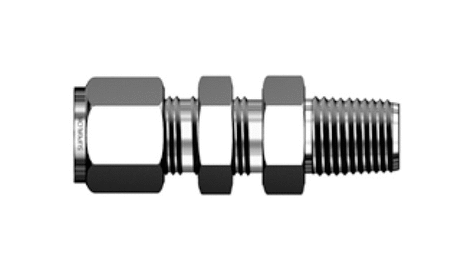

SBMC 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector
Specifications
Part Number
SBMC 6-4N
Brand
Superlok®
End Type
National Pipe Thread (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SBMC 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

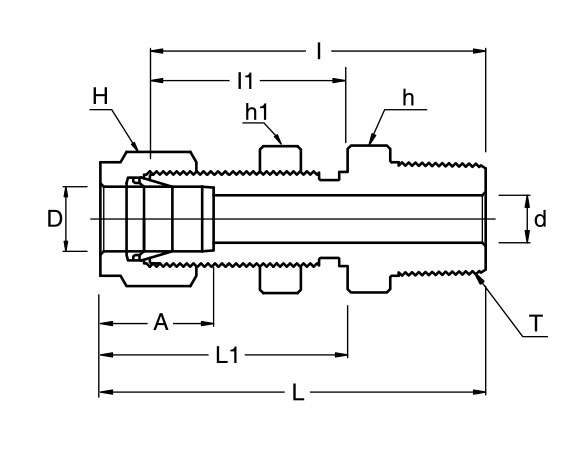

Dimensions
Dimension A
16.76 mm
Dimension I
50.03 mm
Dimension I1
29.46 mm
Dimension L
57.4 mm
Dimension L1
36.83 mm
Dimension d [Min]
7.11 mm
End Size
44200 in
Pannel Hole Drill Size
14.68 mm
Pannel Thickness [Max]
11.17 mm
Tube Outside Diameter D
3/8 in
Width Across Flats H
11/16 in
Width Across Flats h
3/4 in
Width Across Flats h1
3/4 in
