Item# SBNV2-S-8

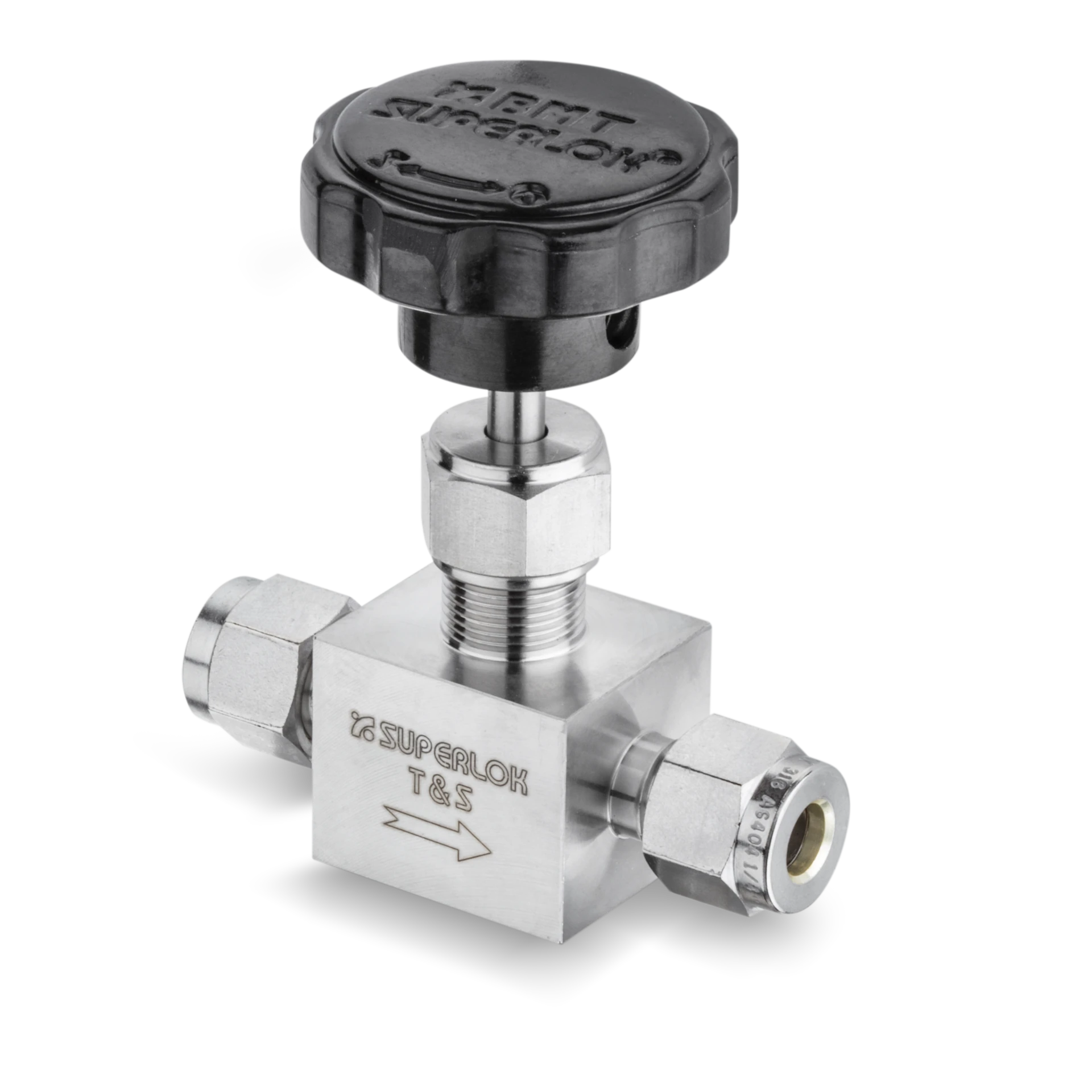

SBNV 1/2 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve

Integral bonnet design Bar stock body Compact design Low operating torques Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory

SBNV2-S-8
SBNV Needle Valves - 2
Specifications
Part Number
SBNV2-S-8
Brand
Superlok®
Body Material
316 Stainless Steel, Alloy 400, Brass
Inch/Metric
Inch
Series
SBNV
Actuator Color
Actuator Type
Cv Coefficient
0.73
Description
SBNV 1/2 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
End Type
End Type 2

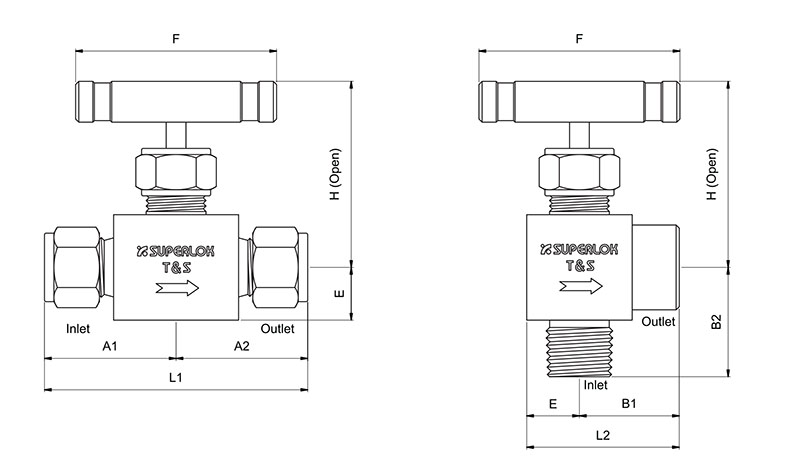

Dimensions
Dimension A1
41.9 mm
Dimension A2
41.9 mm
Dimension B1
mm
Dimension B2
mm
Dimension D
mm
Dimension E
mm
Dimension F
mm
Dimension H
mm
Dimension L1
83.8 mm
Dimension L2
mm
End Size
44198 in
End Size 2
44198 in
Orifice Diameter
6.4 mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ºC) Temperature
bar
psig
Pressure Rating at 100 (38 ºC) Temperature
413 bar
6000 psig
Temperature Rating (316 Stainless Steel)
ºC
ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing
315 ºC
600 ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing
-54 to 232 ºC
65 to 450 ºF

Part#

CAD Download Part #

Please submit the form below and your download will begin immediately. (All fields are required)
