Item# SBR 2-2

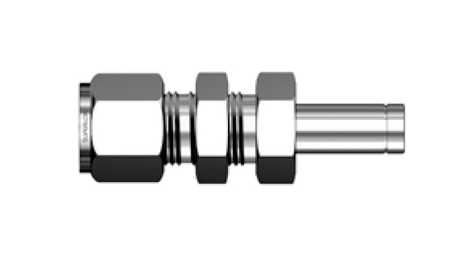

SBR 1/8 in. Tube Outside Diameter D x 1/8 in. Tube Stub Bulkhead Reducer

SBR 2-2

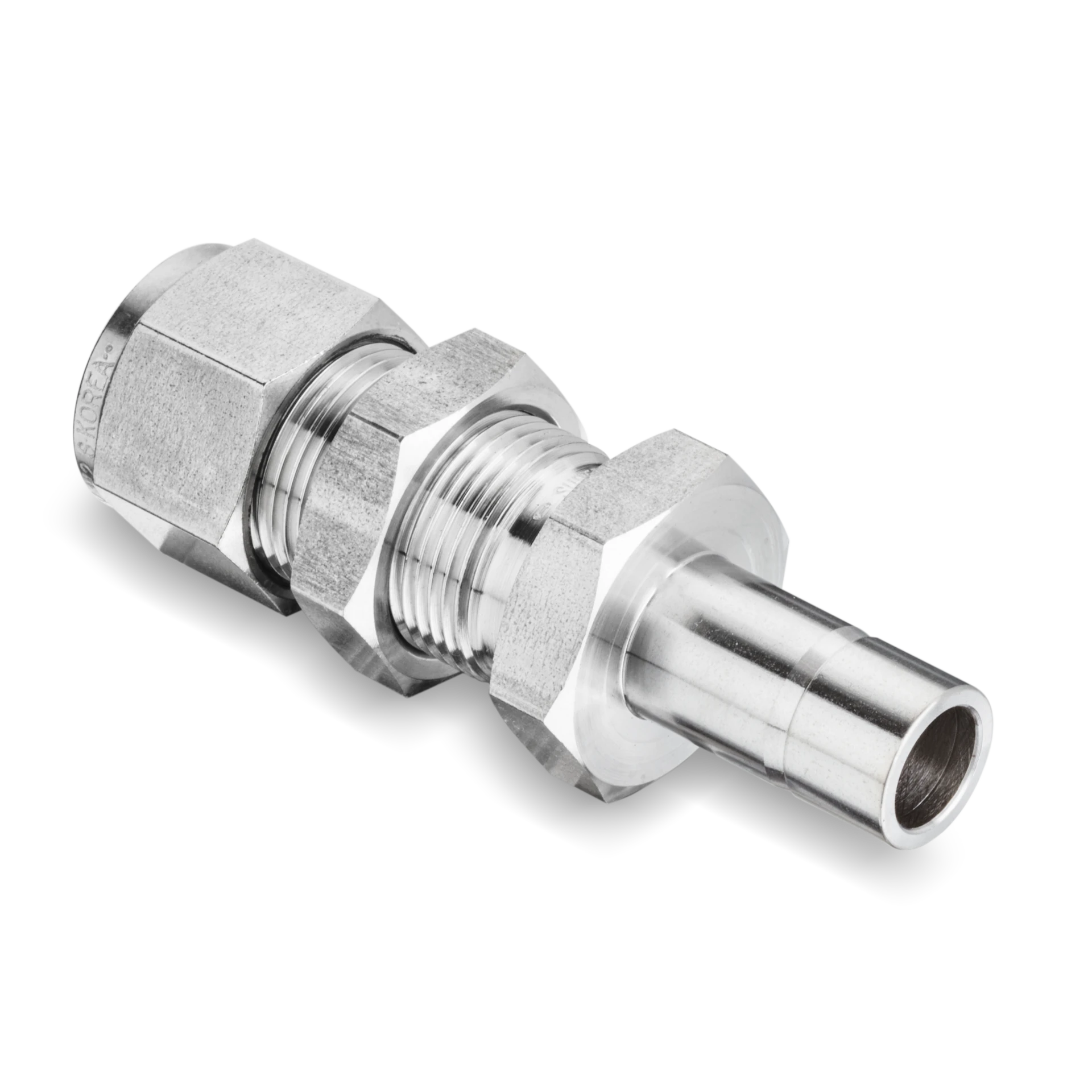

SBR TUBE FITTING
SBR Bulkhead Reducers - 2
Specifications
Part Number
SBR 2-2
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SBR 1/8 in. Tube Outside Diameter D x 1/8 in. Tube Stub Bulkhead Reducer

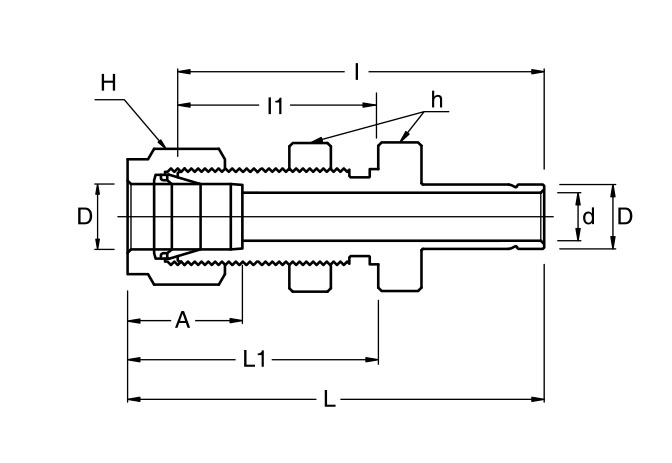

Dimensions
Dimension A
12.70 mm
Dimension I
42.92 mm
Dimension I1
24.63 mm
Dimension L
49.53 mm
Dimension L1
31.24 mm
Dimension d [Min]
2.1 mm
Pannel Hole Drill Size
8.33 mm
Pannel Thickness [Max]
12.70 mm
Tube Outside Diameter D
1/8 in
Width Across Flats H
7/16 in
Width Across Flats h
1/2 in
