Item# SFC 5-4N

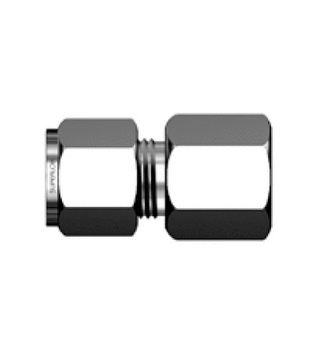

SFC 5/16 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Female Connector

SFC 5-4N
SFC Female Connectors - 2
Specifications
Part Number
SFC 5-4N
Brand
Superlok®
End Type
National Pipe Thread (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SFC 5/16 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Female Connector
Dimensions
Dimension A
16.25 mm
Dimension B
18.54 mm
Dimension I
29.46 mm
Dimension L
36.83 mm
Dimension d [Min]
6.35 mm
End Size
44200 in
Tube Outside Diameter D
5/16 in
Width Across Flats H
5/8 in
Width Across Flats h
3/4 in
