Item# SGRV-MF-8N

SGRV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, 6000 psi Working Pressure [Max] Gauge Root Valve

Stainless Steel construction 1/2 in. and 3/4 in, male to 1/2 in. female end connections 1/2 in. female gauge ports standard

SGRV-MF-8N
Specifications
Part Number
SGRV-MF-8N
Brand
Superlok®
End Type
Male National Pipe Thread (MNPT)
End Type 2
Female National Pipe Thread (FNPT)
Inch/Metric
Inch
Series
SGRV
Description
SGRV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, 6000 psi Working Pressure [Max] Gauge Root Valve
Material
316 Stainless Steel

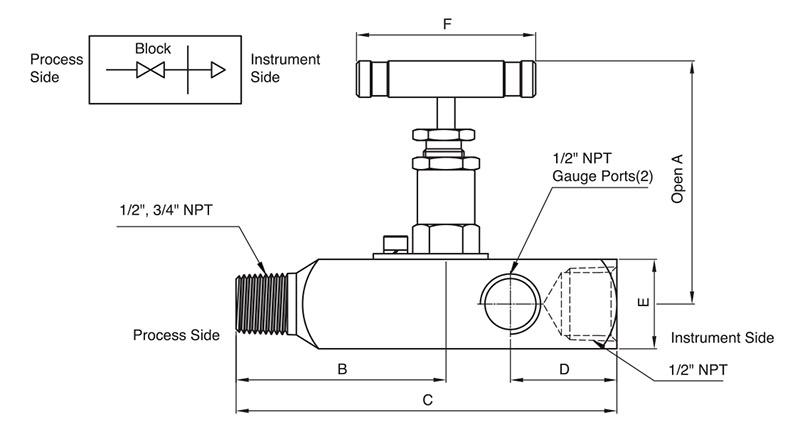

Dimensions
Dimension A
68.4 mm
Dimension B
75.0 mm
Dimension C
136.0 mm
Dimension D
in
38.1 mm
Dimension E
32.0 mm
Dimension F
45.0 mm
End Size
44198 in
End Size 2
44198 in
Operating Pressure [Max]
413 bar
6000 psig
Orifice
0.125 in
3.2 mm
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing
-54 to 232 ºC
-65 to 450 ºF
