Item# SHME 8-6N

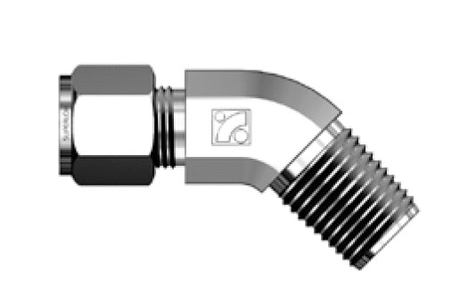

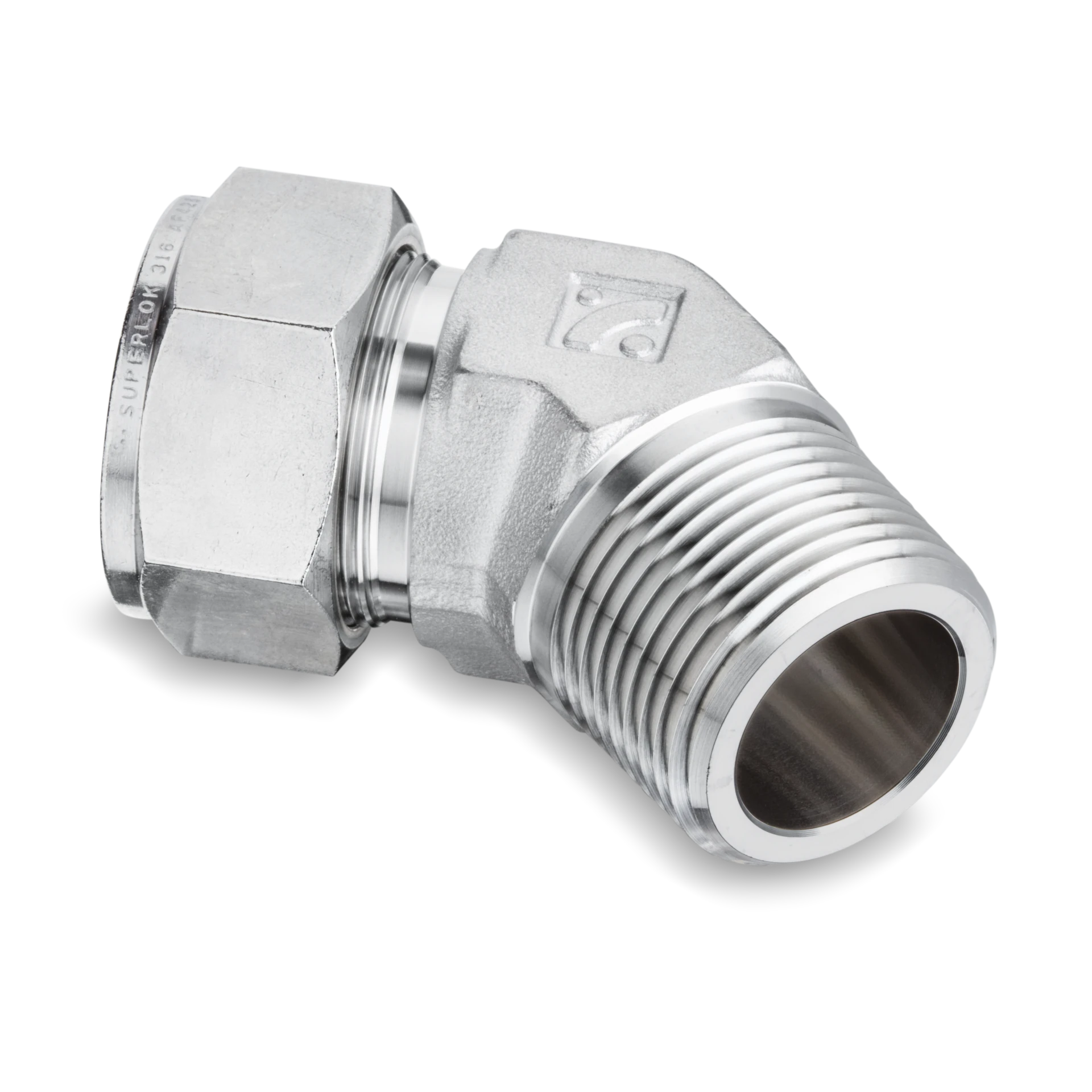

SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow

SHME 8-6N
Specifications
Part Number
SHME 8-6N
Brand
Superlok®
End Type
Female National Pipe Thread (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow

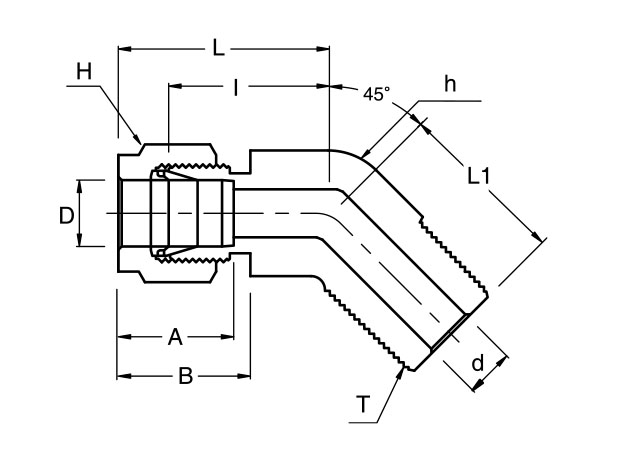

Dimensions
Angle
45 º
Dimension A
22.86 mm
Dimension B
21.84 mm
Dimension I
21.84 mm
Dimension L
32.00 mm
Dimension L1
24.13 mm
Dimension d [Min]
9.65 mm
End Size
44263 in
Tube Outside Diameter D
1/2 in
Width Across Flats H
7/8 in
Width Across Flats h
13/16 in
