Item# SHUE-6

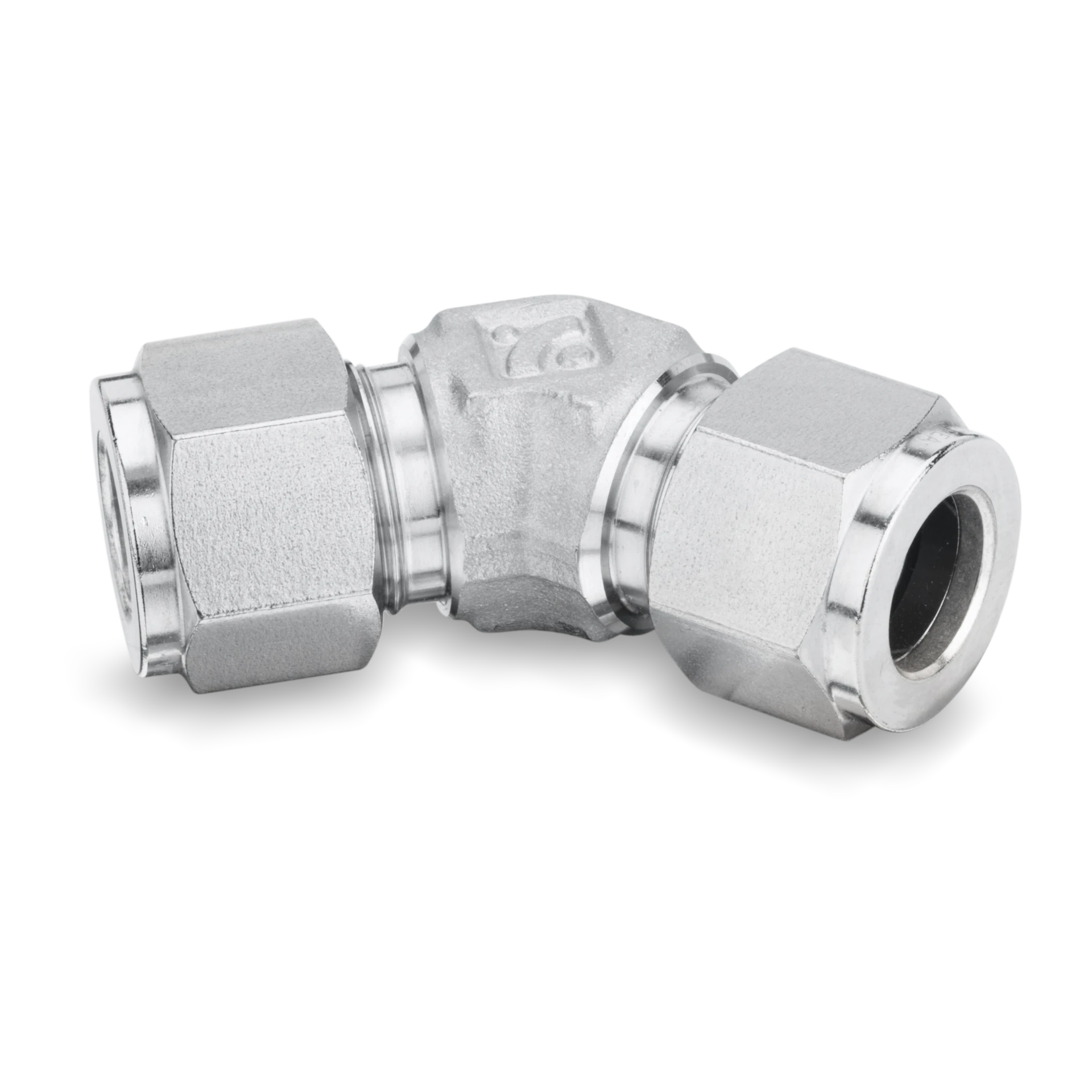

3/8 in O.D. 45 Degree Union Elbow

Downloads

Data Sheet for SHUE 45 Degree Union Elbows

Request a Quote

Call Us (805) 658-2043

SHUE TUBE FITTING

SHUE 45 Degree Unions Elbows - 2

Specifications

Part Number

SHUE-6

Brand

Superlok®

Inch/Metric

Inch

Material

316 Stainless Steel

Description

3/8 in O.D. 45 Degree Union Elbow

Dimensions

Angle

45 º

Dimension A

16.8 mm

Dimension B

19.3 mm

Dimension H

14.3 mm

Dimension L

29.2 mm

Dimension d

7.1 mm

Dimension h

14.9 mm

Tube O.D, ØD

3/8" in
