Item# SM2V-F-8N-G

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve

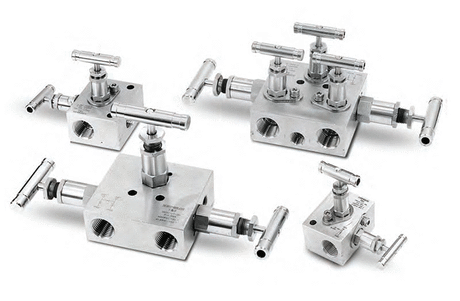

2-, 3-, and 5-valves Instrument manifolds valves Pressure Rating up to 6000 psig (413 bar) at 100 ºF(37 ºC) Temperature up to 1200 ºF (648 ºC) with optional Grafoil packing All 316 stainless steel construction with PTFE packing

SM2V-F-8N-G
Specifications
Part Number
SM2V-F-8N-G
Brand
Superlok®
Inch/Metric
Inch
Description
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
Mounting Type
Packaging Material
Grafoil
Dimensions
Dimension A
103.5 mm
Dimension B
41.5 mm
Dimension C
51.0 mm
Dimension D
47.5 mm
Dimension E
63.5 mm
Dimension F
85.9 mm
Dimension G
33.5 mm
Dimension H
mm
End Connections
Bleed Type
Female National Pipe Thread (FNPT) Instrument Type
Process Type
End Connections Bleed Size
mm
End Connections Instrument Size
1/2 mm
End Connections Process Size
mm
Orifice
0.125 in
3.2 mm
Pressure Rating with Grafoil at 1200 (648 ºC)
118 bar
1715 psig
Temperature Rating with Grafoil
648 ºC
1200 ºF

Part#
