Item# SMC 4-4N

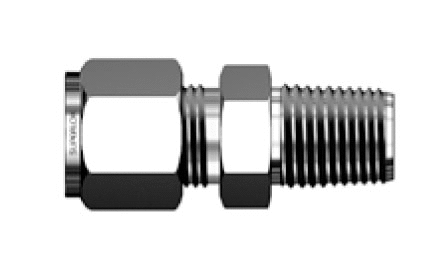

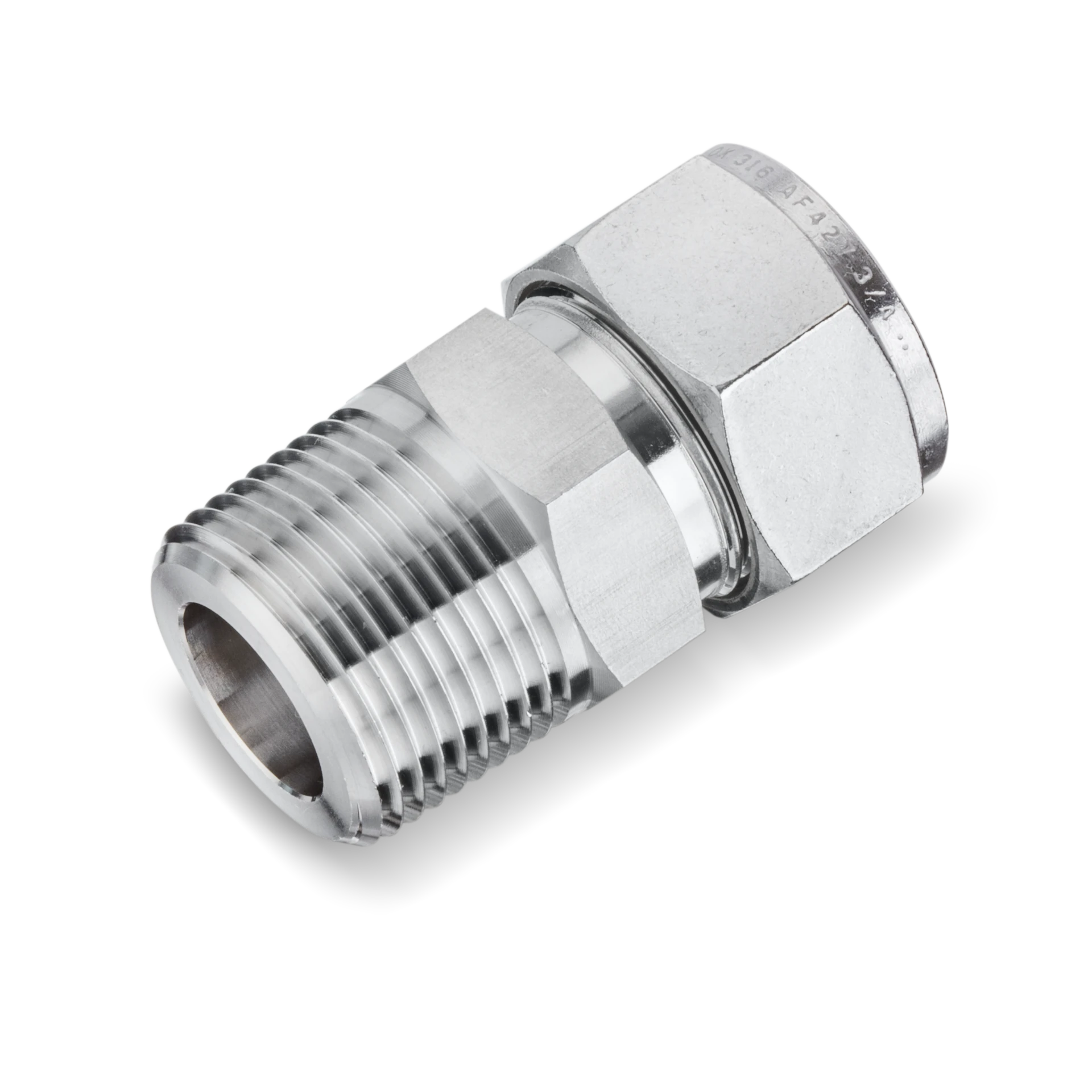

SMC 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Male Connector
Specifications
Part Number
SMC 4-4N
Brand
Superlok®
End Type
National Pipe Thread (NPT)
Material
316 Stainless Steel
Description
SMC 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Male Connector
Inch/Metric
Inch

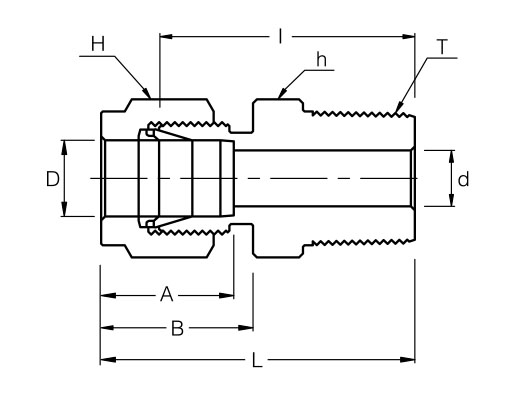

Dimensions
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
30.48 mm
Dimension L
37.84 mm
Dimension d [Min]
4.82 mm
End Size
44200 in
Tube Outside Diameter D
1/4 in
mm
Width Across Flats H
9/16 in
mm
Width Across Flats h
9/16 in
mm
