Item# SME 16-16N
SME 1 in. Tube Outside Diameter D x 1 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow

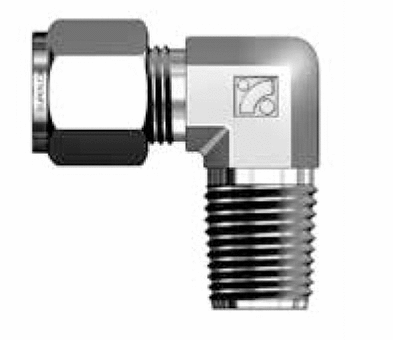

![SME 16-16N](https://www.superloknorthamerica.com/wp-content/uploads/superlok/lfiles/part-images/90-15032021-044383L.gif)

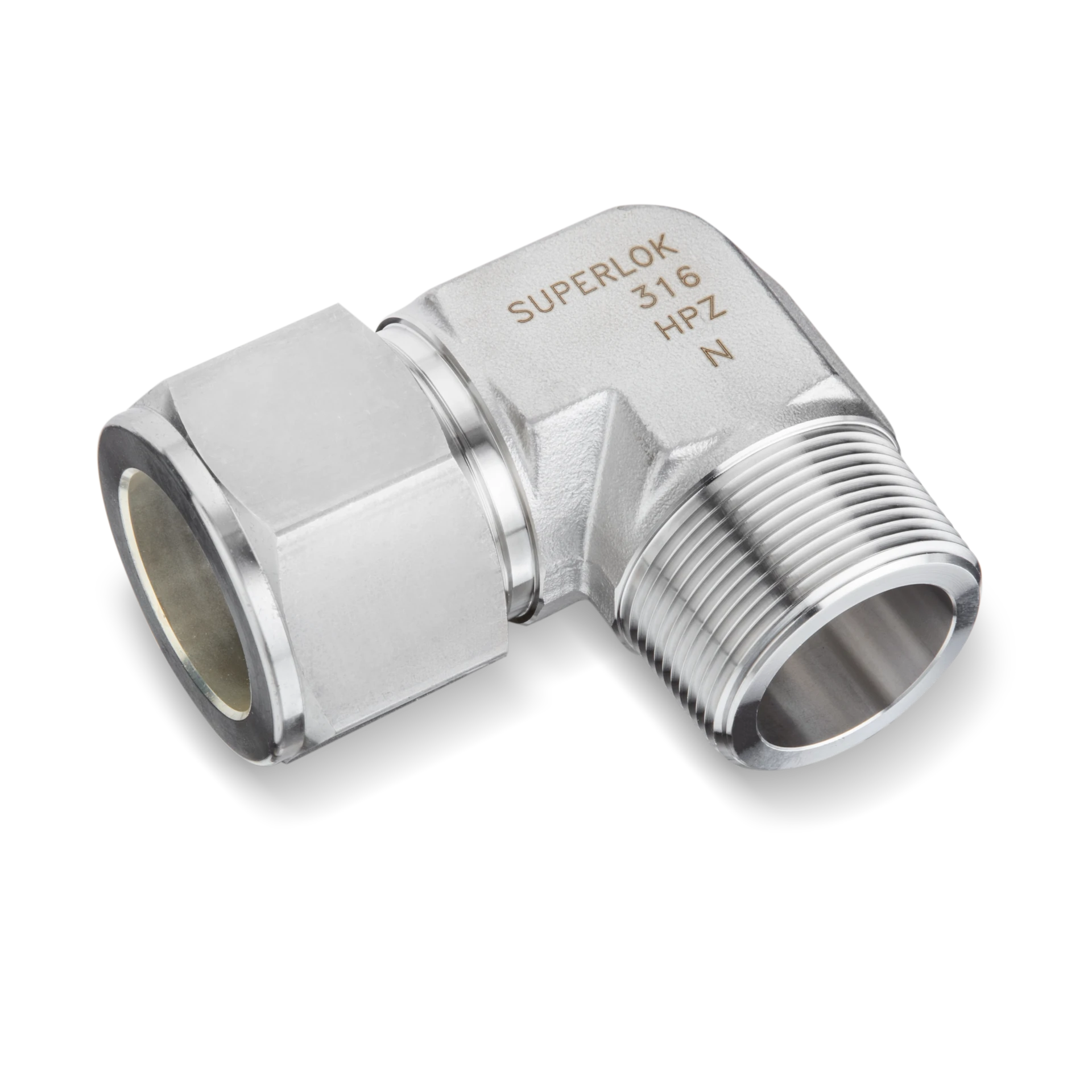

![SME TUBE FITTING](https://www.superloknorthamerica.com/wp-content/uploads/2024/06/SME-TUBE-FITTING.webp)
![SME 90 Degree Male Elbows - 2](https://www.superloknorthamerica.com/wp-content/uploads/2024/02/a1004.jpg)
Specifications
Part Number
SME 16-16N
Brand
Superlok®
Material
316 Stainless Steel
Description
SME 1 in. Tube Outside Diameter D x 1 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
End Type
Female National Pipe Thread (NPT)
Inch/Metric
Inch

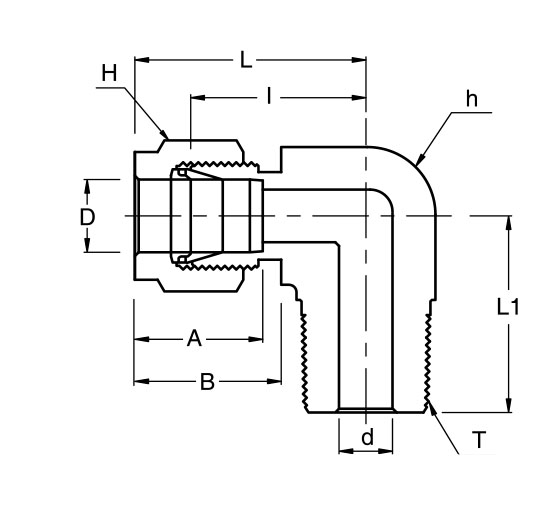

Dimensions
Angle
90 º
Dimension A
31.24 mm
Dimension B
26.41 mm
Dimension I
36.83 mm
Dimension L
49.02 mm
Dimension L1
46.48 mm
Dimension d [Min]
22.35 mm
End Size
1 in
Tube Outside Diameter D
1 in
mm
Width Across Flats H
1-1/2 in
mm
Width Across Flats h
1-3/8 in
mm
