Item# SOACV1-M-4N-D

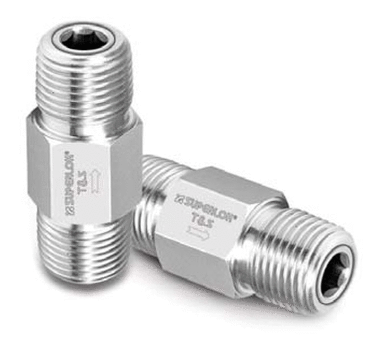

SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 350-600 psi Cracking Pressure Range Adjustable Check Valve

Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory

SOACV1-M-4N-D
SOACV Adjustable Check Valves - 2
Specifications
Part Number
SOACV1-M-4N-D
Brand
Superlok®
Cv Coefficient
0.35
End Type
Male National Pipe Thread (MNPT)
End Type 2
Male National Pipe Thread (MNPT)
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Series
SOACV
Description
SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 350-600 psi Cracking Pressure Range Adjustable Check Valve
Dimensions
Back Pressure at 70 (20 ºC) Temperature
206 bar
3000 psig
Dimension A
41.1 mm
Dimension h (HEX)
9/16 in
14.3 mm
Inlet
1/4 mm
Nominal Cracking Pressure
0.2 to 41.3 bar
3 to 600 psig
Operating Pressure [Min]
206 bar
3000 psig
Outlet
1/4 mm
Temperature Rating for Fluorocarbon (FKM)
-23 to 190 ºC
-10 to 375 ºF
Temperature Rating for Nitrile Butadiene Rubber
-23 to 121 ºC
-10 to 250 ºF
