Item# SPHME 6-6U

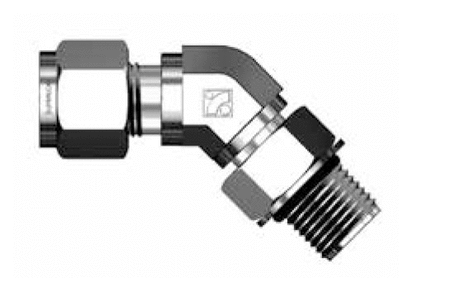

SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread

SPHME 6-6U
Z-240514-SuperLok-0029
SPHME Positionable 45 Degree Male Elbows - 2
Specifications
Part Number
SPHME 6-6U
Brand
Superlok®
Description
SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread
End Size
43359
End Type
Society of Automotive Engineering (SAE)/MS Straight Thread (U)
Inch/Metric
Inch
Material
316 Stainless Steel
Dimensions
Angle
45 º
Dimension A
16.76 mm
Dimension B
19.30 mm
Dimension C
20.07 mm
Dimension I
20.57 mm
Dimension L
27.94 mm
Dimension L1
28.19 mm
Dimension d [Min]
7.11 mm
Outside Diameter Pipe Size (P)
21.30 mm
Tube Outside Diameter D
3/8 in
Width Across Flats H
11/16 in
Width Across Flats h1
5/8 in
Width Across Flats h2
11/16 in
