Item# SPME 4-4U

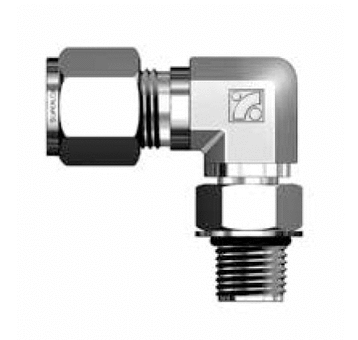

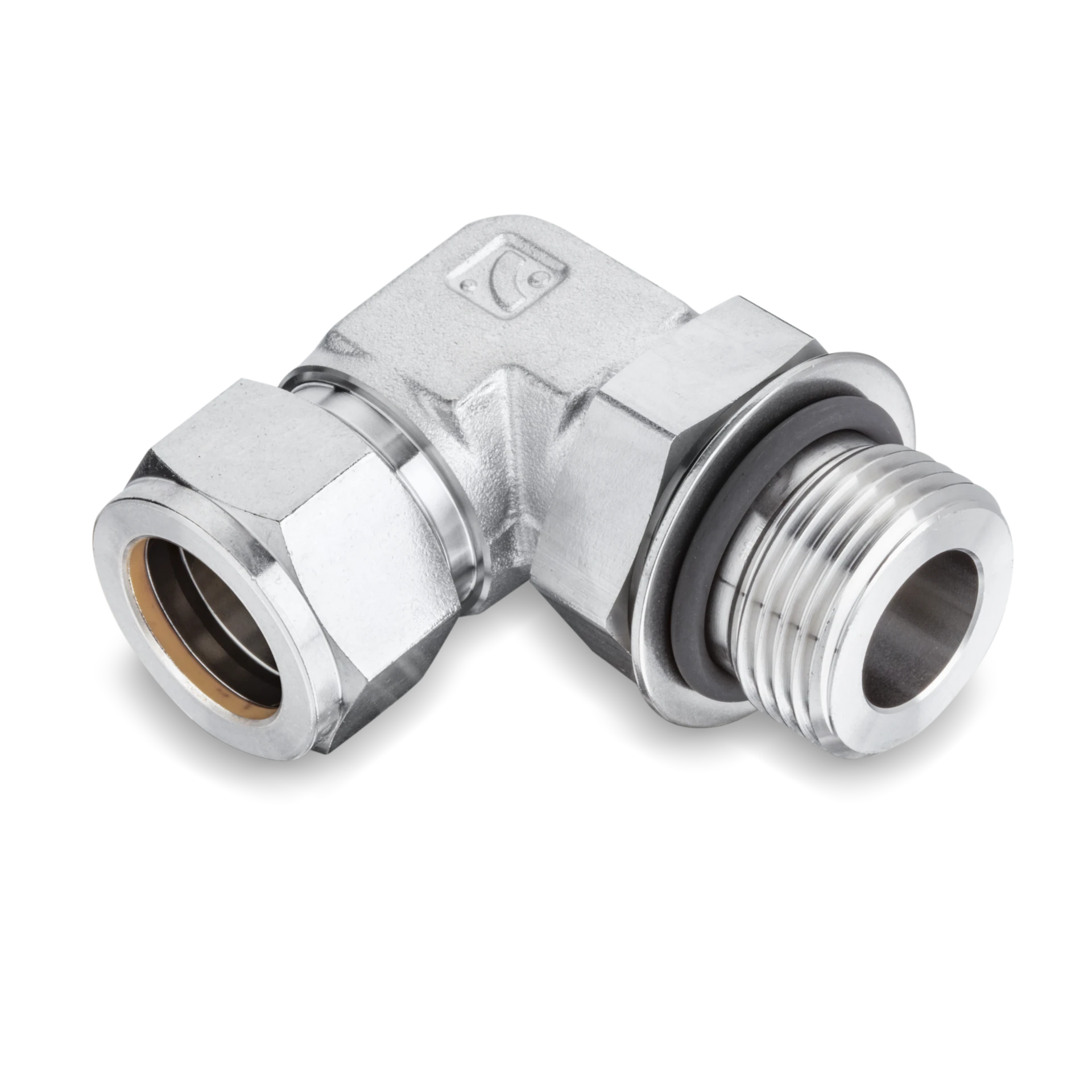

SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

SPME 4-4U
SPME TUBE FITTING
SPME Positionable 90 Degree Male Elbows - 2
Specifications
Part Number
SPME 4-4U
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
End Size
44028
in
End Type
Society of Automotive Engineering (SAE)/MS Straight Thread

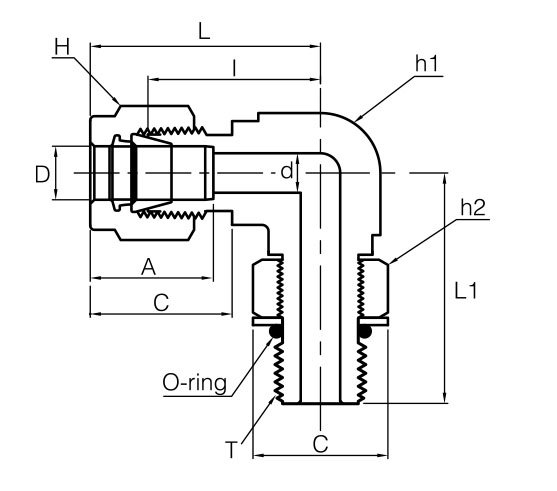

Dimensions
Angle
90 º
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension C
16.51 mm
Dimension I
21.08 mm
Dimension L
28.45 mm
Dimension L1
28.45 mm
Dimension d [Min]
4.83 mm
Tube Outside Diameter D
1/4 in
Width Across Flats H
9/16 in
Width Across Flats h1
9/16 in
Width Across Flats h2
9/16 in

Part#

CAD Download Part #
