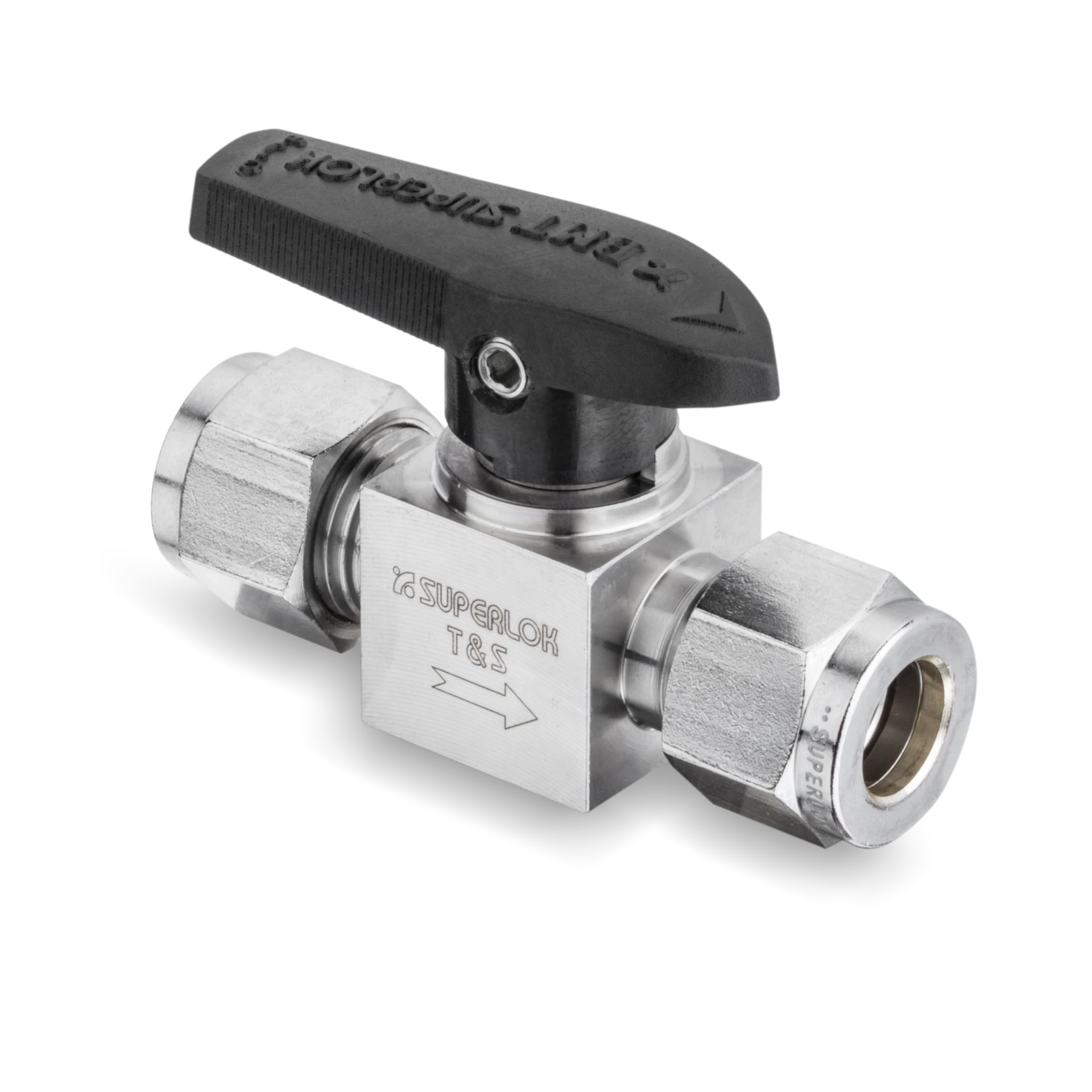

Item# SPV131-F-4N
SPV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
Pressure Rating up to 3000 psig (206 bar) at 100 ºF (37 ºC) Temperature rating -10 ºF to 400 ºF (-23 ºC to 204 ºC) Simple design with one piece body 316 stainless steel body materials
Specifications
Part Number
SPV131-F-4N
Brand
Superlok®
Body Material
316 Stainless Steel
Inch/Metric
Inch
Series
SVP
Cv Coefficient
0.9
Description
SPV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
End Type
Female National Pipe Thread (FNPT)
End Type 2
Female National Pipe Thread (FNPT)

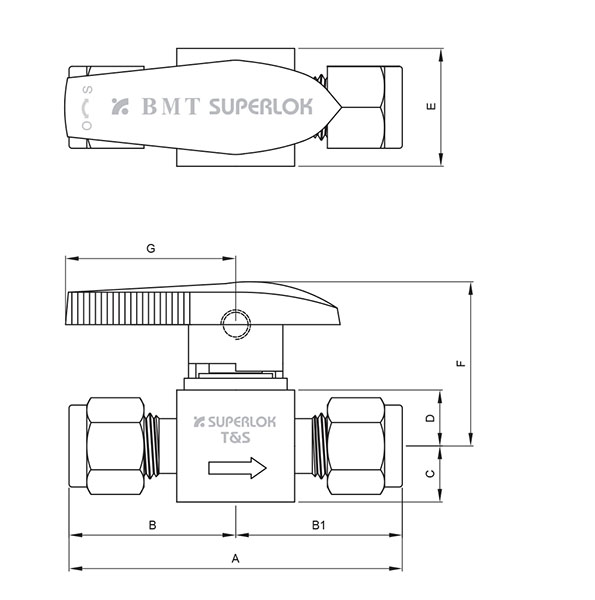

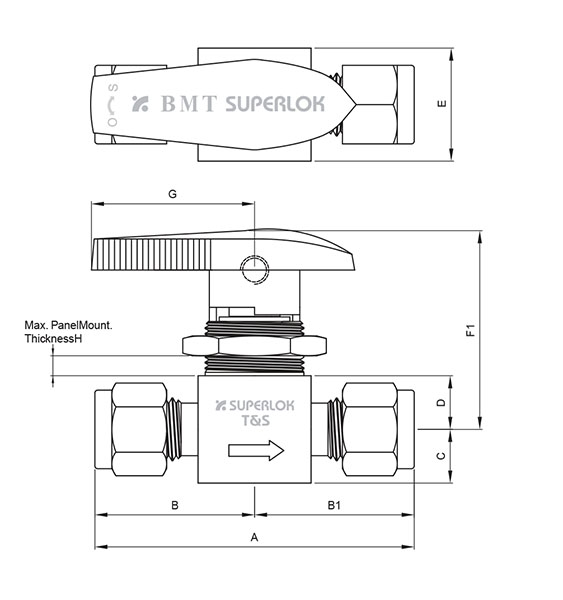

Dimensions
Dimension A
53.1 mm
Dimension B
26.6 mm
Dimension B1
26.6 mm
Dimension C
9.5 mm
Dimension D
9.5 mm
Dimension E
20.0 mm
Dimension F
27.9 mm
Dimension F1
35.5 mm
Dimension G
28.9 mm
Dimension H
6.4 mm
End Size
44200 mm
End Size 2
44200 mm
Operating Temperature [Max]
204 ºC
400 ºF
Operating Temperature [Min]
-23 ºC
-10 ºF
Orifice
4.4 mm
Pressure Rating Stainless Steel at 250 (121 ºC) Temperature
137 bar
2000 psig
Pressure Rating Stainless Steel at 300 (148 ºC) Temperature
68.9 bar
1000 psig
Pressure Rating Stainless Steel at 350 (176 ºC) Temperature
68.9 bar
1000 psig
Pressure Rating Stainless Steel at 400 (204 ºC) Temperature
68.9 bar
1000 psig
Temperature
-53 to 37,93,121,148,176,204 ºC
-65 to 100,200,250,300,350,400 ºF
Working Pressure at 200 (93 ºC) Temperature
206 bar
3000 psig
Working Pressure at 65 (-53 ºC) to 100 (37 ºC) Temperature
206 bar
3000 psig
