Item# SRPC 8-4

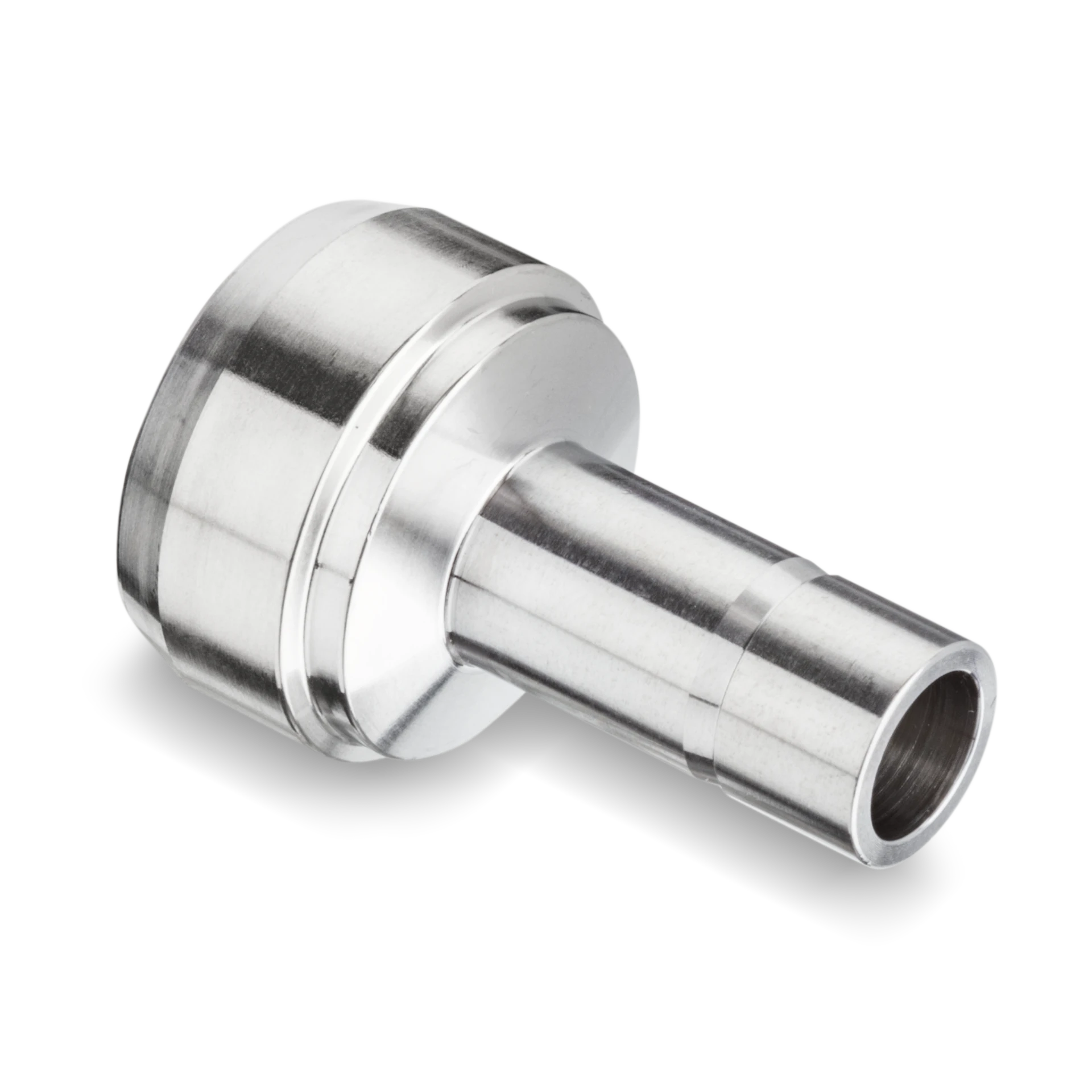

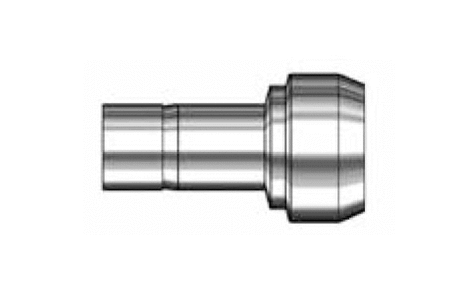

SRPC 1/2 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector
Specifications
Part Number
SRPC 8-4
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SRPC 1/2 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector

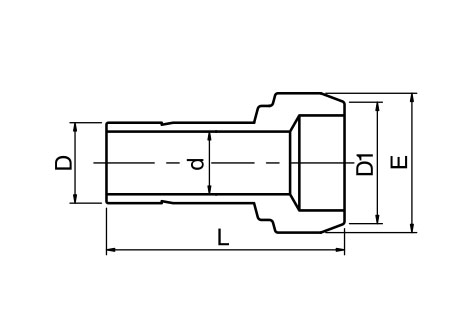

Dimensions
Dimension E
15.74 mm
Dimension I
15.74 mm
Dimension I1
3.81 mm
Dimension L
29.21 mm
Dimension d [Min]
4.4 mm
Tube Outside Diameter D
1/4 in
Tube Outside Diameter D1
1/2 in
