Item# SRU 8-6

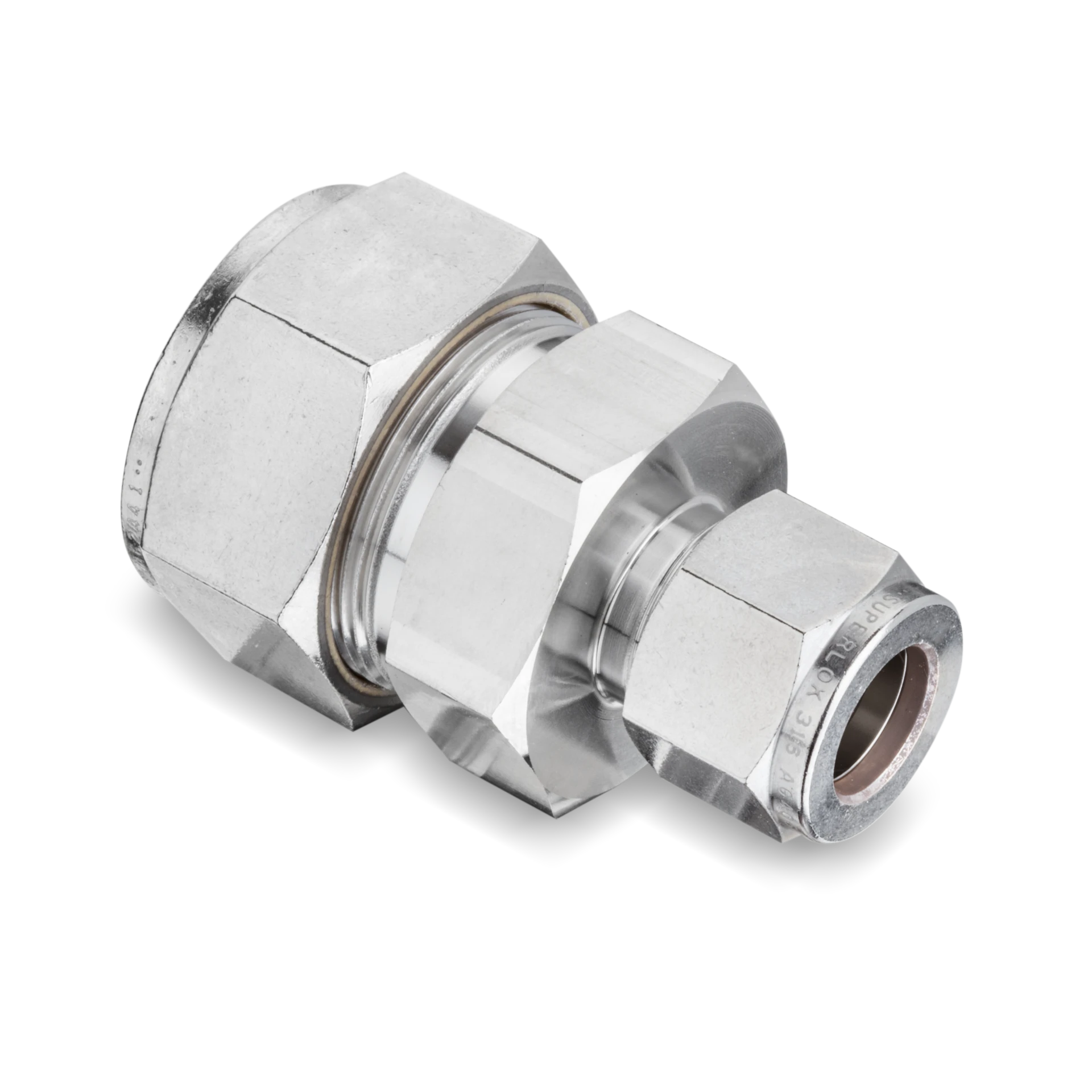

SRU 1/2 in. Tube Outside Diameter D x 3/8 in. Tube Outside Diameter D1 Reducing Union

SRU 8-6
SRU TUBE FITTING
SRU Reducing Unions - 2
Specifications
Part Number
SRU 8-6
Brand
Superlok®
Description
SRU 1/2 in. Tube Outside Diameter D x 3/8 in. Tube Outside Diameter D1 Reducing Union
Inch/Metric
Inch

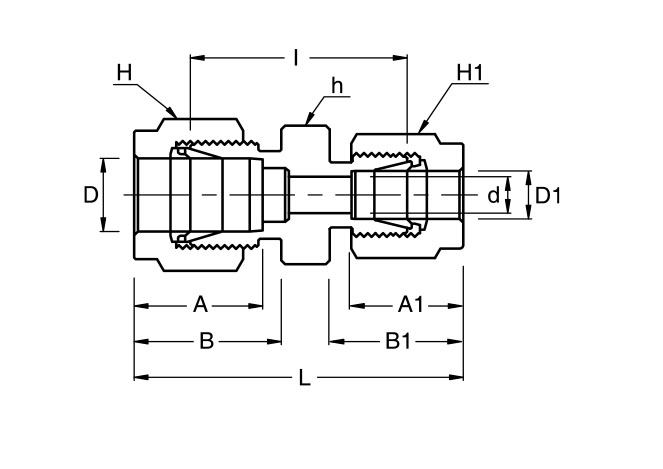

Dimensions
Dimension A
22.86 mm
Dimension A1
16.76 mm
Dimension B
21.84 mm
Dimension B1
19.30 mm
Dimension I
30.98 mm
Dimension L
48.51 mm
Dimension L2
mm
Dimension d [Min]
7.11 mm
Tube Outside Diameter D
1/2 in
mm
Tube Outside Diameter D1
3/8 in
mm
Width Across Flats H
7/8 in
mm
Width Across Flats H1
11/16 in
mm
Width Across Flats h
13/16 in
mm
