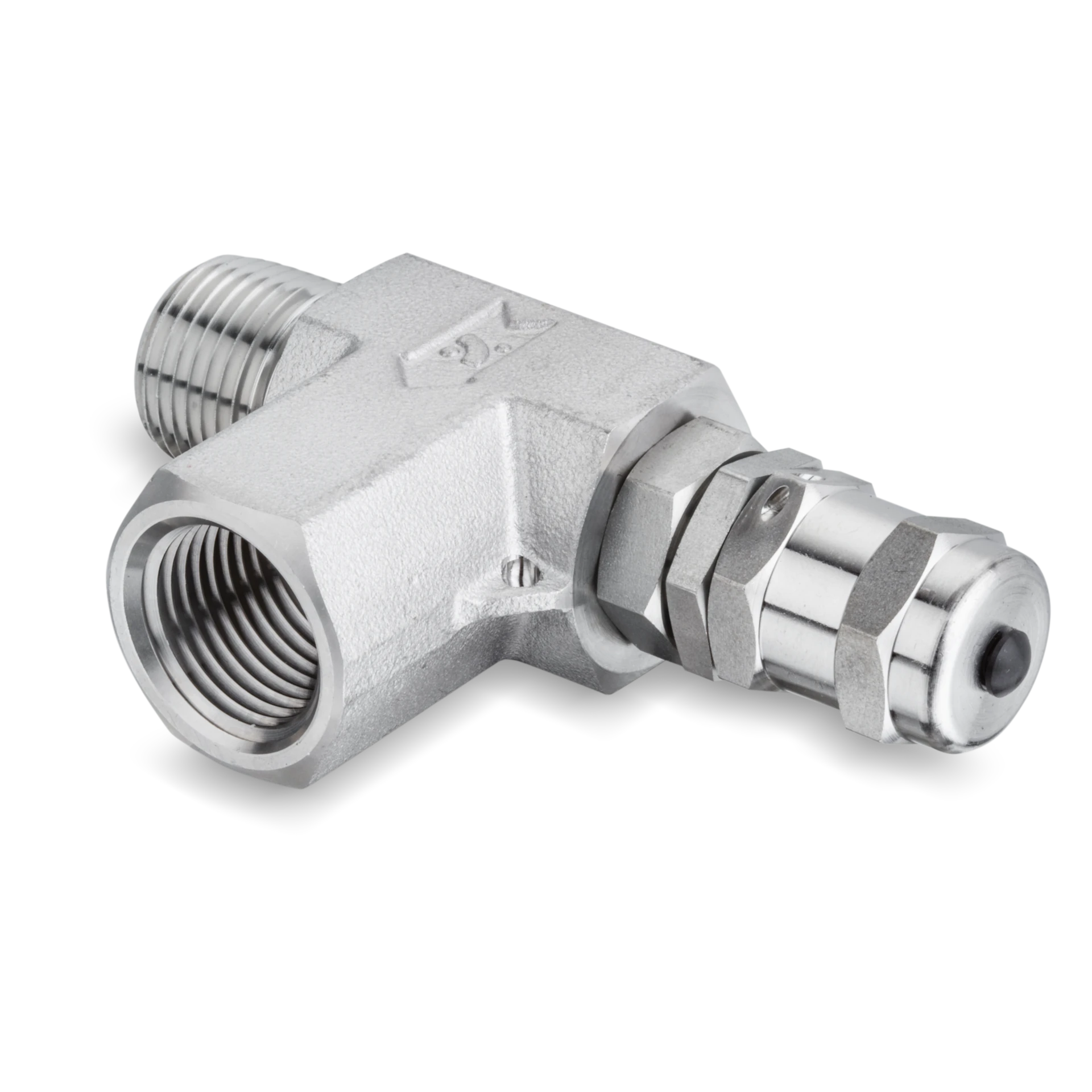

Item# SRVH-MF-4N-KZ

1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, No Spring, FFKM (Perfluoroelastomer) O-Ring, 6000 psi High Pressure Relief Valve

Compact design Cracking pressure adjustable externally Lock wire feature secures a given pressure setting Each and every valve is tested at the factory

SRVH-MF-4N-KZ

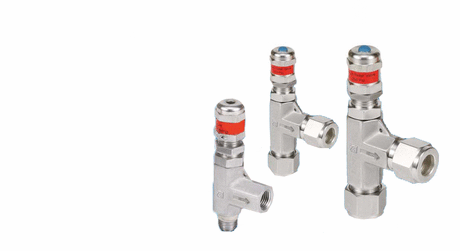

SRVL/SRVH Relief Valves - 2
Specifications
Part Number
SRVH-MF-4N-KZ
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Series
SRVH
Description
1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, No Spring, FFKM (Perfluoroelastomer) O-Ring, 6000 psi High Pressure Relief Valve
End Type
Male National Pipe Thread (NPT)
End Type 2
Female National Pipe Thread (NPT)

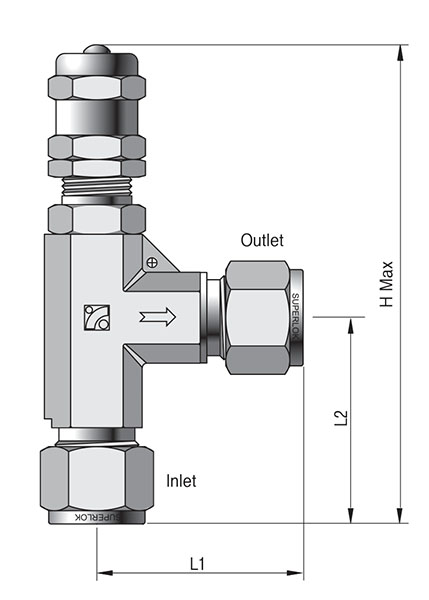

Dimensions
Cracking Pressure Range
15.5 to 414 bar
225 to 6000 psig
Dimension H
99.5 mm
Dimension L1
30.0 mm
Dimension L2
32.2 mm
End Size
44200 mm
End Size 2
44200 mm
Operating Pressure [Max]
413 bar
6000 psig
Orifice
4.8 mm
