Item# SRVL-S-6-N

SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve

Compact design Cracking pressure adjustable externally Lock wire feature secures a given pressure setting Each and every valve is tested at the factory

SRVL-S-6-N

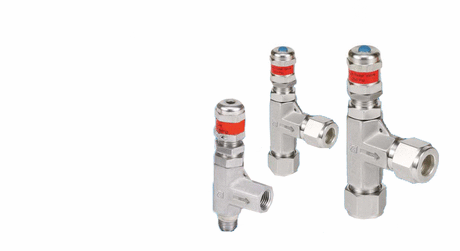

SRVL/SRVH Relief Valves - 2
Specifications
Part Number
SRVL-S-6-N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Series
SRVL
Description
SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
End Type
End Type 2
Dimensions
Cracking Pressure Range
0.69 to 17.2 bar
10.0 to 250 psig
Dimension H
111.7 mm
Dimension L1
44.4 mm
Dimension L2
44.4 mm
End Size
44263 mm
End Size 2
44263 mm
Operating Pressure [Max]
20.6 bar
300 psig
Orifice
4.8 mm

Part#
