Item# SSMC 6-10U

SSMC 3/8 in. Tube Outside Diameter D x 7/8-14 Male Society of Automotive Engineering (SAE) Connector with O-Ring

SSMC 6-10U
SSMC TUBE FITTING
SSMC Male Connectors - 2
Specifications
Part Number
SSMC 6-10U
Brand
Superlok®
End Type
Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SSMC 3/8 in. Tube Outside Diameter D x 7/8-14 Male Society of Automotive Engineering (SAE) Connector with O-Ring
O-Ring Uniform Size Number
3-910

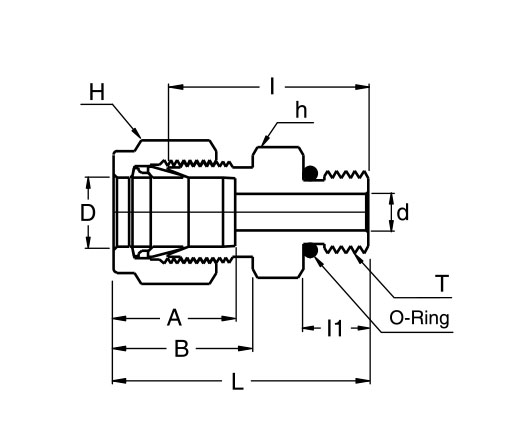

Dimensions
Dimension A
16.76 mm
Dimension B
19.30 mm
Dimension I
34.79 mm
Dimension I1
12.70 mm
Dimension L
42.16 mm
Dimension d [Min]
7.11 mm
End Size
41828 in
Tube Outside Diameter D
3/8 in
Width Across Flats H
11/16 in
Width Across Flats h
1 in
