Item# SSWC-6

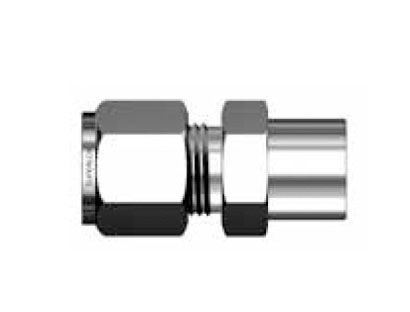

SSWC 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Socket Weld Connector

SSWC-6
SPWC TUBE FITTING
SSWC Tube Socket Weld Connectors - 2
Specifications
Part Number
SSWC-6
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SSWC 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Socket Weld Connector
Dimensions
Dimension A
16.76 mm
Dimension B
19.30 mm
Dimension I
30.22 mm
Dimension I1
9.65 mm
Dimension L
37.59 mm
Dimension L1
11.93 mm
Dimension P
15.74 mm
Dimension d [Min]
7.11 mm
Tube Outside Diameter D
3/8 in
Width Across Flats H
11/16 in
Width Across Flats h
5/8 in
