Item# SSWE-4

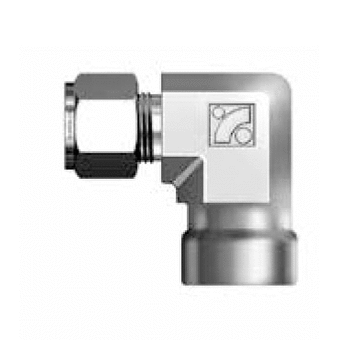

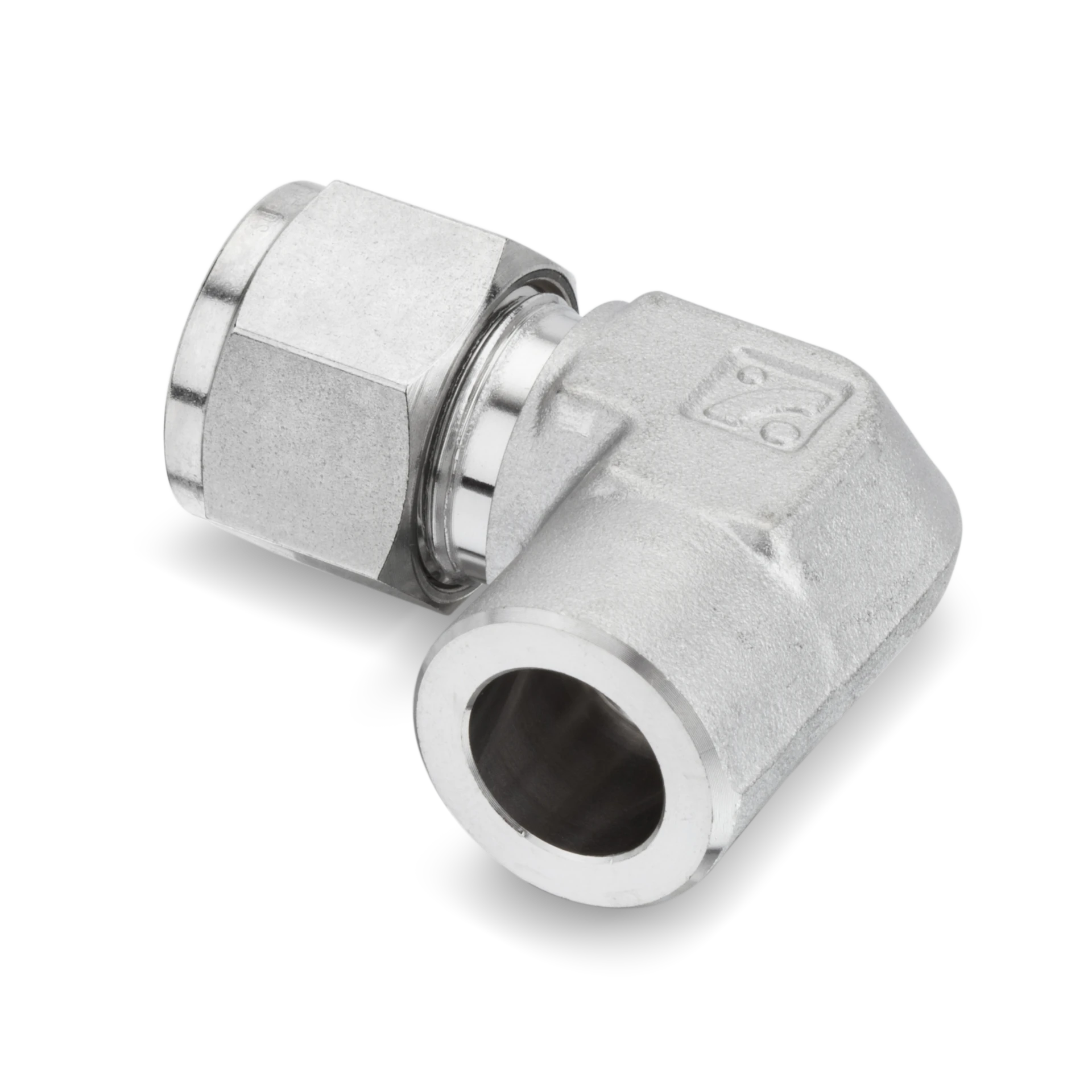

SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow

SSWE-4
Z-2024_05_29-SuperLok-0050
SSWE Tube Socket Elbows - 2
Specifications
Part Number
SSWE-4
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow

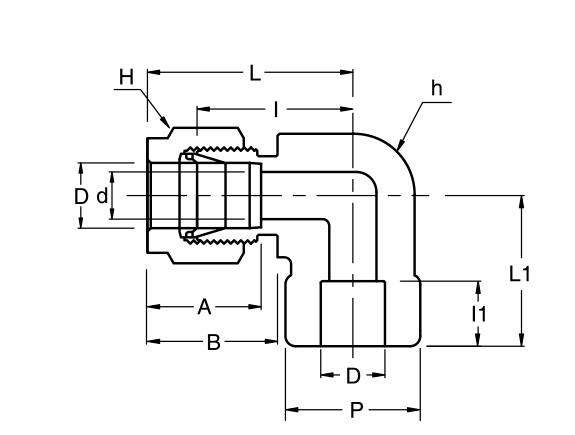

Dimensions
Angle
90 º
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
19.55 mm
Dimension I1
7.87 mm
Dimension L
26.92 mm
Dimension L1
19.55 mm
Dimension P
12.70 mm
Dimension d [Min]
4.82 mm
Tube Outside Diameter D
1/4 in
Width Across Flats H
9/16 in
Width Across Flats h
5/8 in
