Item# SUC-8

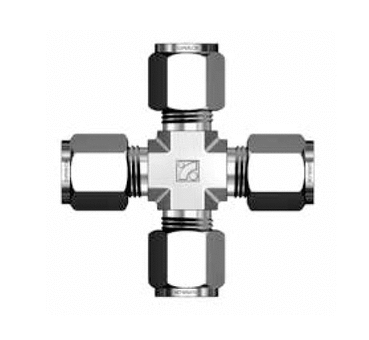

SUC 1/2 in. Tube Outside Diameter D Union Cross

SUC-8

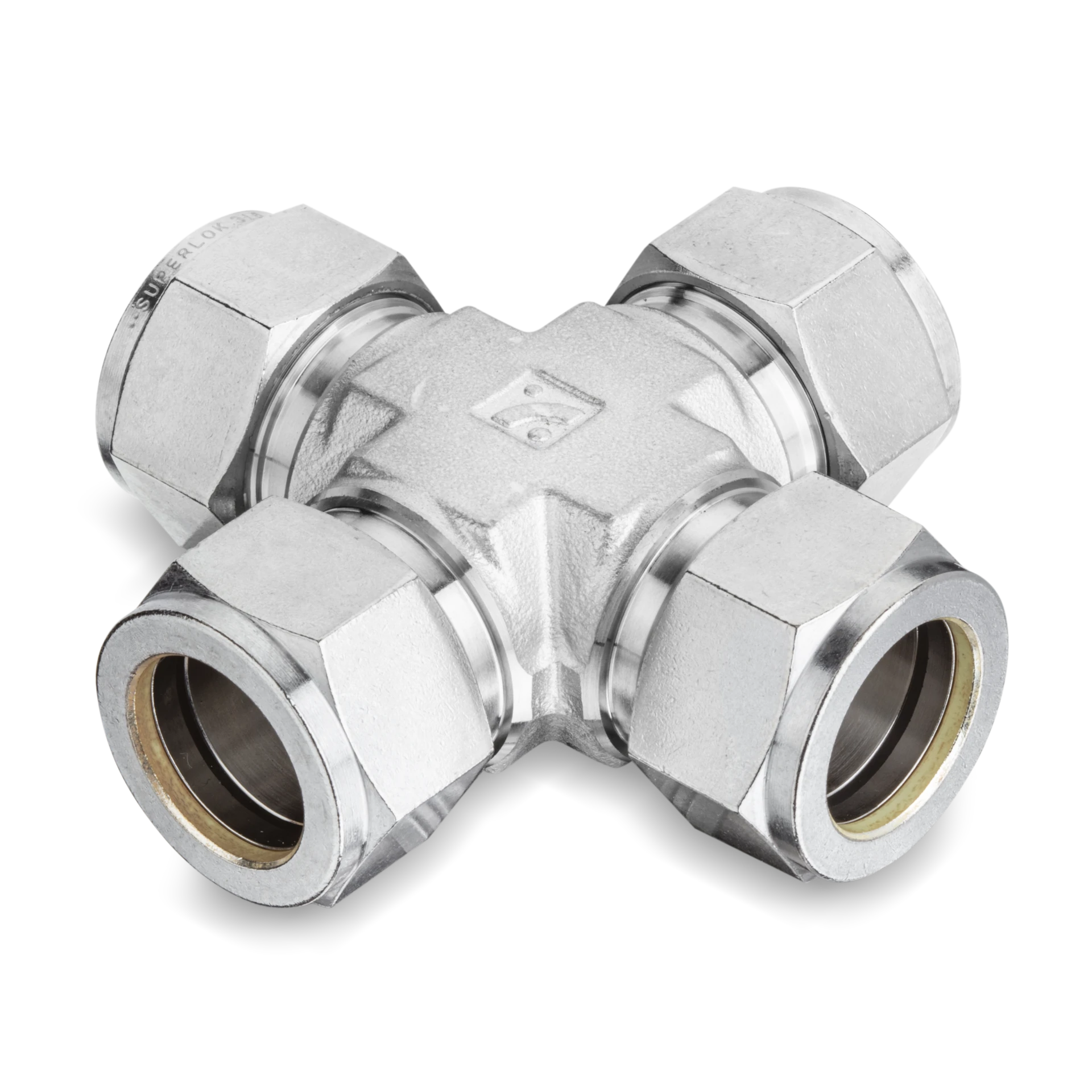

SUC TUBE FITTING
SUC Union Crosses - 2
Specifications
Part Number
SUC-8
Brand
Superlok®
Inch/Metric
Metric
Material
316 Stainless Steel
Description
SUC 1/2 in. Tube Outside Diameter D Union Cross

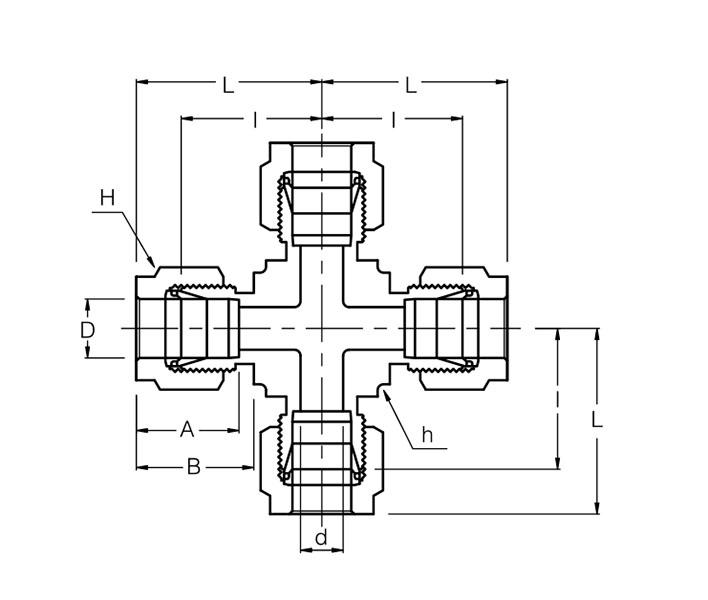

Dimensions
Dimension A
22.86 mm
Dimension B
21.84 mm
Dimension I
25.90 mm
Dimension L
36.06 mm
Dimension d [Min]
10.41 mm
Tube Outside Diameter D
1/2 in
Width Across Flats H
7/8 in
Width Across Flats h
13/16 in
