Item# SWB3202-S-12-OH

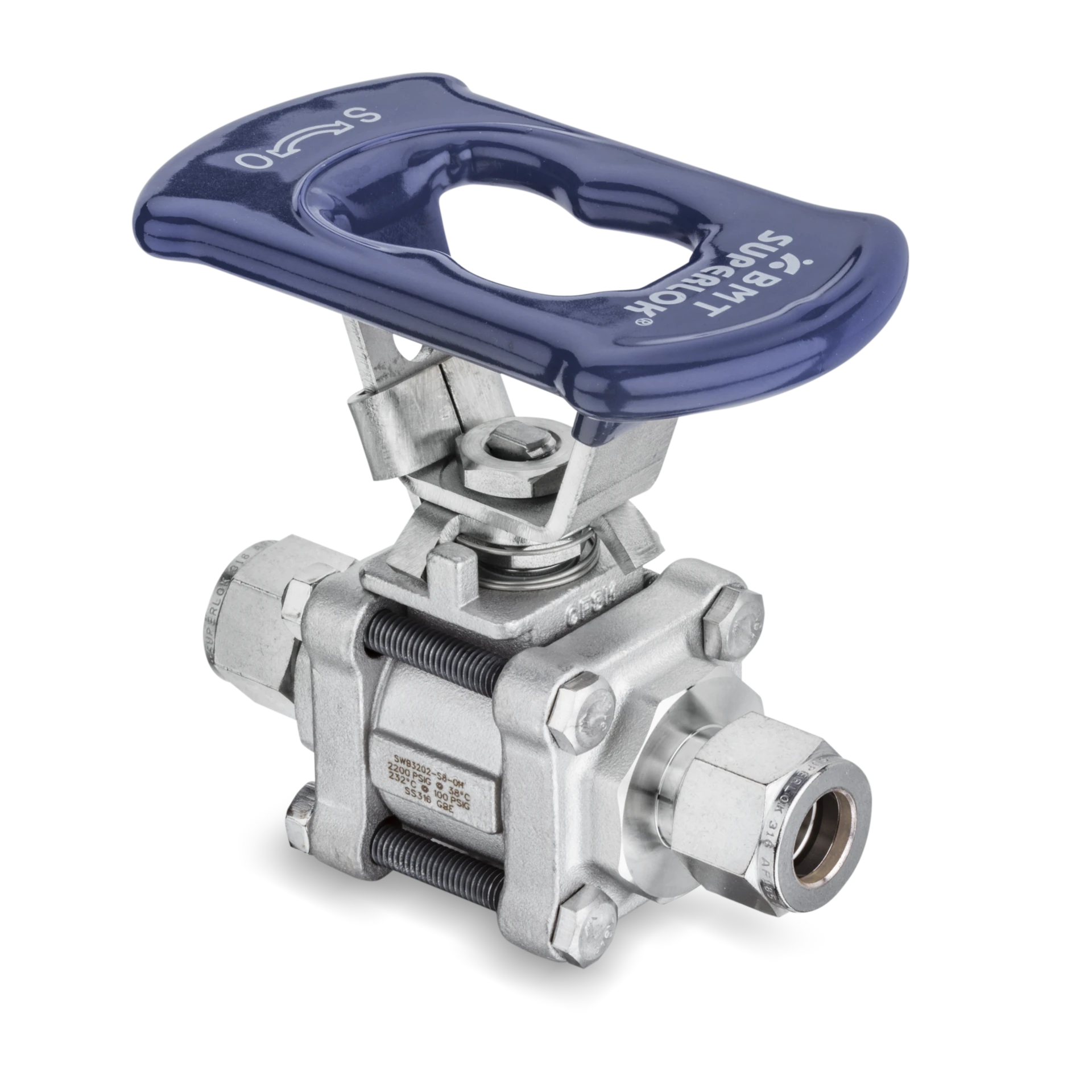

SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve

SWB3202-S-12-OH
Superlok Ball Valve
Specifications
Part Number
SWB3202-S-12-OH
Brand
Superlok®
Body Material
316 Stainless Steel, Brass
Inch/Metric
Inch
Series
SWB
Cv Coefficient
13.6
Description
SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve
End Type
Dimensions
Dimension A
64.8 mm
Dimension B
44.5 mm
Dimension C
103.8 mm
Dimension D
51.90 mm
Dimension E
22.25 mm
Dimension F
44.2 mm
Dimension H
111.0 mm
End Size
44259 in
Orifice
0.516 in
13.1 mm
Pressure Rating
206 bar
3000 psig
Temperature Rating
-28 to 232 ºC
-20 to 450 ºF
