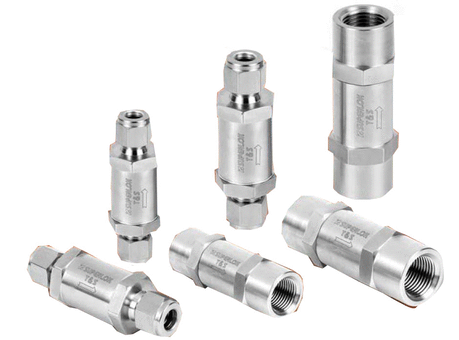

IF Filter Elements for SIF Inline Filters
Remove system particulate contaminants. Inline filters are for use where space is limited. Replaceable filter element. Maximum operating pressure : 3000 psi at 70 ºF (21 ºC) Operating temperature range : -20 ºF to 900 ºF (-28 ºC to 482 ºC ) with SS316 body 1/8 to 1/2 in. and 3 to 10 mm end connections.
11 Items in IF Filter Elements for SIF Inline Filters
side-scroll to see full table
|
|
|
|
|
|
|
|
|
|
|
|
| Part# | IF1-ET-0.5 | IF1-ET-2 | IF2-ET-0.5 | IF2-ET-2 | IF2-ET-7 | IF2-ET-60 | IF2-ET-90 | IF3-ET-0.5 | IF3-ET-2 | IF3-ET-7 | IF3-ET-7 |
| Information | |||||||||||
| Type |
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
Filter Element
|
| Part Number |
IF1-ET-0.5
|
IF1-ET-2
|
IF2-ET-0.5
|
IF2-ET-2
|
IF2-ET-7
|
IF2-ET-60
|
IF2-ET-90
|
IF3-ET-0.5
|
IF3-ET-2
|
IF3-ET-7
|
IF3-ET-7
|
| Dimensions | |||||||||||
| Nominal Size |
0.5µm
|
2µm
|
0.5µm
|
2µm
|
7µm
|
60µm
|
90µm
|
0.5µm
|
2µm
|
7µm
|
7µm
|
| Specifications | |||||||||||
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
| Series |
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
IF
|
| Description |
Filter Element for SIF1 Inline Filter, 0.5 Micron
|
Filter Element for SIF1 Inline Filter, 2 Micron
|
Filter Element for SIF1 Inline Filter, 0.5 Micron
|
Filter Element for SIF1 Inline Filter, 2 Micron
|
Filter Element for SIF1 Inline Filter, 7 Micron
|
Filter Element for SIF1 Inline Filter, 60 Micron
|
Filter Element for SIF1 Inline Filter, 90 Micron
|
Filter Element for SIF1 Inline Filter, 0.5 Micron
|
Filter Element for SIF1 Inline Filter, 2 Micron
|
Filter Element for SIF1 Inline Filter, 7 Micron
|
Filter Element for SIF1 Inline Filter, 7 Micron
|
