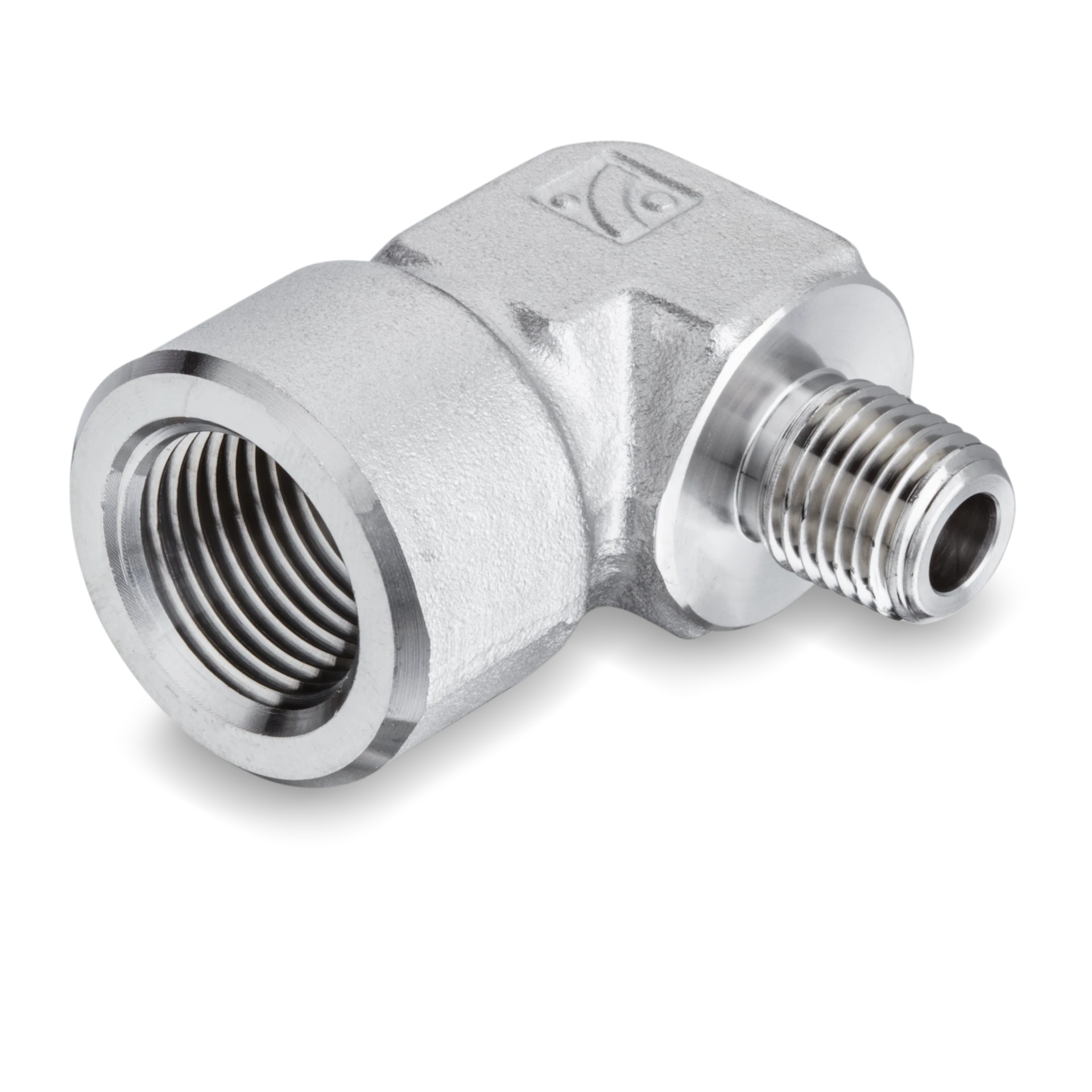

IRSE Reducing Street Elbows

IRSE PIPE FITTING
IRSE Reducing Street Elbows - 2
6 Items in IRSE Reducing Street Elbows
side-scroll to see full table

Part# IRSE 4-2N IRSE 6-4N IRSE 8-4N IRSE 8-6N IRSE 12-8N IRSE 12-8N
Information
Type
Street Elbows
Street Elbows
Street Elbows
Street Elbows
Street Elbows
Street Elbows
Part Number
IRSE 4-2N
IRSE 6-4N
IRSE 8-4N
IRSE 8-6N
IRSE 12-8N
IRSE 12-8N

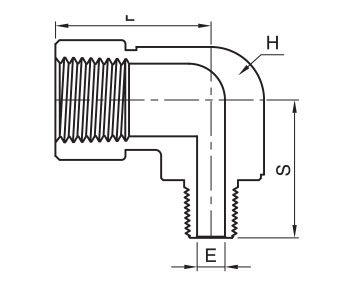

Dimensions
Dimension E
4.8mm
7.1mm
7.1mm
9.6mm
11.9mm
11.9mm
Dimension H
17.5mm
20.6mm
25.4mm
25.4mm
31.8mm
31.8mm
Dimension L
29.0mm
34.5mm
37.0mm
37.0mm
46.5mm
46.5mm
Dimension S
22.4mm
28.2mm
30.5mm
30.5mm
39.6mm
39.6mm
Female Pipe Size
1/4in
3/8in
1/2in
1/2in
3/4in
3/4in
Pressure Rating (Brass)
248bar
3600psig
192bar
2800psig
192bar
2800psig
192bar
2800psig
172bar
2500psig
172bar
2500psig
Pressure [Max]
496bar
7200psig
385bar
5600psig
385bar
5600psig
385bar
5600psig
351bar
5100psig
351bar
5100psig
Size
44204in
44200in
44200in
44263in
44198in
44198in
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Style
Instrumentation Thread Fittings
Instrumentation Thread Fittings
Instrumentation Thread Fittings
Instrumentation Thread Fittings
Instrumentation Thread Fittings
Instrumentation Thread Fittings
Description
IRSE 1/4 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
IRSE 3/8 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
IRSE 1/2 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
IRSE 1/2 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
IRSE 3/4 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
IRSE 3/4 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Reducing Street Elbow
