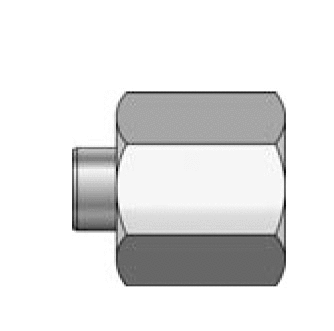

JC Joint Industrial Council (JIC) Caps
![JC Joint Industrial Council (JIC) Caps](https://www.superloknorthamerica.com/wp-content/uploads/superlok/lfiles/product-images/90-15032021-044786L.gif)
![JC Joint Industrial Council (JIC) Caps - 2](https://www.superloknorthamerica.com/wp-content/uploads/2024/02/a1231.jpg)
3 Items in JC Joint Industrial Council (JIC) Caps
side-scroll to see full table
![]() |
![]() |
![]() |
|
Part# | JC-2T | JC-4T | JC-4T |
Information | |||
Type |
Tube Cap
|
Tube Cap
|
Tube Cap
|
Part Number |
JC-2T
|
JC-4T
|
JC-4T
|

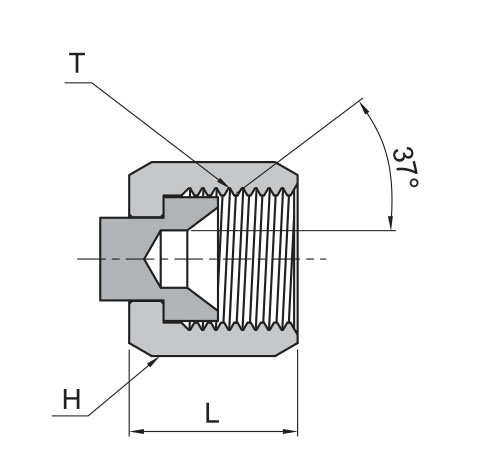

Dimensions | |||
Dimension H (Hex) |
9.5mm
|
14.3mm
|
14.3mm
|
Dimension L |
13.7mm
|
15.5mm
|
15.5mm
|
Tube Outside Diameter D |
1/8in
3mm
|
1/4in
6mm
|
1/4in
6mm
|
Specifications | |||
End Type |
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Inch/Metric |
Inch
|
Inch
|
Inch
|
Material |
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
Description |
JC 1/8 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Cap
|
JC 1/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Cap
|
JC 1/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Cap
|
End Size |
45428
|
44028
|
44028
|
Equivalent Part # |
SS-2-AN-CP
|
SS-4-AN-CP
|
SS-4-AN-CP
|
