JP Joint Industrial Council (JIC) Plugs
![JP Joint Industrial Council (JIC) Plugs](https://www.superloknorthamerica.com/wp-content/uploads/superlok/lfiles/product-images/90-15032021-044789L.gif)
![JP Joint Industrial Council (JIC) Plugs - 2](https://www.superloknorthamerica.com/wp-content/uploads/2024/02/a1229.jpg)
3 Items in JP Joint Industrial Council (JIC) Plugs
side-scroll to see full table
![]() |
![]() |
![]() |
|
Part# | JP-2T | JP-4T | JP-4T |
Information | |||
Type |
Plug
|
Plug
|
Plug
|
Part Number |
JP-2T
|
JP-4T
|
JP-4T
|

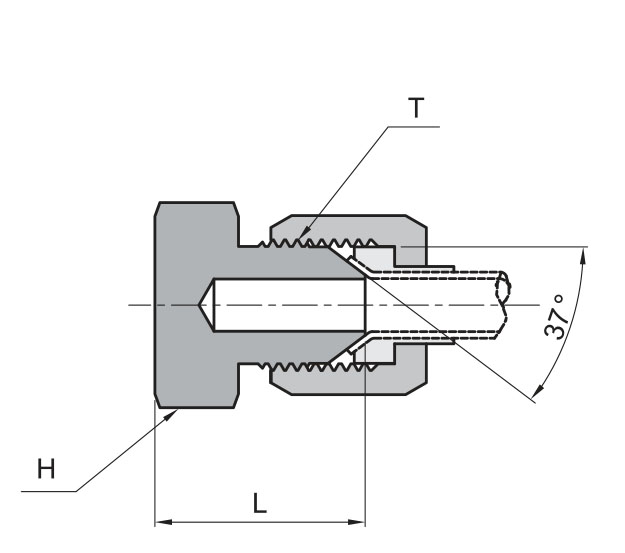

Dimensions | |||
Dimension H (Hex) |
11.1mm
|
12.7mm
|
12.7mm
|
Dimension L |
17.8mm
|
20.3mm
|
20.3mm
|
Tube Outside Diameter D |
1/8in
3mm
|
1/4in
6mm
|
1/4in
6mm
|
Specifications | |||
End Type |
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Unified Fine (UNF)/Unified Constant Pitch (UN)
|
Inch/Metric |
Inch
|
Inch
|
Inch
|
Material |
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
Description |
JP 1/8 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Plug
|
JP 1/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Plug
|
JP 1/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Plug
|
Thread Size |
45428
|
44028
|
44028
|
