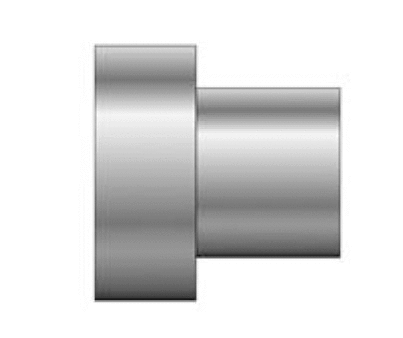

7 Items in JS Joint Industrial Council (JIC) Sleeves
side-scroll to see full table

Part# JS-10T JS-12T JS-16T JS-20T JS-24T JS-6T JS-6T
Information
Type
Sleeves
Sleeves
Sleeves
Sleeves
Sleeves
Sleeves
Sleeves
Part Number
JS-10T
JS-12T
JS-16T
JS-20T
JS-24T
JS-6T
JS-6T
Dimensions
Dimension L
16.8in
16.8mm
17.3in
17.3mm
19.8in
19.8mm
23.1in
23.1mm
28.4in
28.4mm
12.7in
12.7mm
12.7in
12.7mm
Tube Outside Diameter D
5/8in
16mm
3/4in
18mm
1in
25mm
1 1/4in
32mm
1 1/2in
38mm
3/8in
10mm
3/8in
10mm
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Description
JS 5/8 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 3/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 1 in. Tube Outside Diameter D, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 1-1/4 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 1-1/2 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 3/8 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve
JS 3/8 in. Tube Outside Diameter, Stainless Steel Joint Industry Council (JIC) Sleeve

Part#

CAD Download Part #
