SBT Series Ball Valves

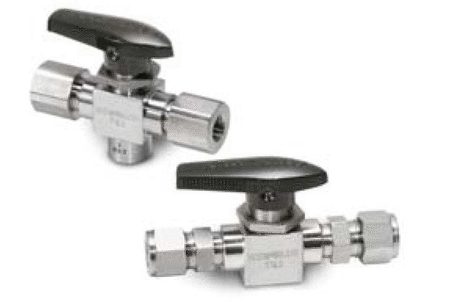

PEEK trunnion bearings for longer cycle life Two-way and three way designs Blow-out resistant two-piece ball/stem Low operating torque Panel mountable to 9.7mm thickness Handle indicates direction of flow Positive handle stops 100% factory tested Compact, maximum flow design. These Valves can be side loaded or loaded from the bottom port and maintain pressure ratings when valve is “CNG” rated.

Downloads

Data Sheet for SBT Series Ball Valves

Request a Quote

Call Us (805) 658-2043

SBT Series Ball Valves

Z-240514-SuperLok-0186

11 Items in SBT Series Ball Valves

	Item #	Item Name
	SBT2-F-4N SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
	SBT2-S-4 SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
	SBT2-S-4-CNG SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
	SBT2-S-6 SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
	SBT2-S-6-CNG SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
	SBT2-S-8 SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
	SBT2-S-8-CNG SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
	SBT3-F-4N-CNG SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve
	SBT3-S-6-CNG SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve
	SBTH3-F-4N SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve
	SBTH3-S-4 SBT 1/4 in. Tube Outside Diameter D 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve	SBT 1/4 in. Tube Outside Diameter D 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve

side-scroll to see full table

Information

Part#	SBT2-F-4N	SBT2-S-4	SBT2-S-4-CNG	SBT2-S-6	SBT2-S-6-CNG	SBT2-S-8	SBT2-S-8-CNG	SBT3-F-4N-CNG	SBT3-S-6-CNG	SBTH3-F-4N	SBTH3-F-4N
Type	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve
Part Number	SBT2-F-4N	SBT2-S-4	SBT2-S-4-CNG	SBT2-S-6	SBT2-S-6-CNG	SBT2-S-8	SBT2-S-8-CNG	SBT3-F-4N-CNG	SBT3-S-6-CNG	SBTH3-F-4N	SBTH3-F-4N
Dimensions
Dimension A	74.7mm	105mm	105mm	112mm	112mm	117mm	117mm	74.7mm	112mm	99.8mm	99.8mm
Dimension B	37.3mm	52.6mm	52.6mm	55.6mm	55.6mm	58.4mm	58.4mm	37.3mm	55.6mm	50.0mm	50.0mm
End Size	44200in	44200in	44200in	44263in	44263in	44198in	44198in	44200in	44263in	44200in	44200in
Orifice	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm
Pressure Rating	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	413bar 6000psig	103bar 1500psig	413 to 689bar 6000 to 10000psig	413 to 689bar 6000 to 10000psig
Temperature Rating	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	-17 to 232ºC 0 to 450ºF	-17 to 121ºC 0 to 250ºF	-17 to 232ºC 0 to 450ºF	-17 to 232ºC 0 to 450ºF
Specifications
Body Material	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Series	SBT	SBT	SBT	SBT	SBT	SBT	SBT	SBT	SBT	SBT	SBT
Cv Coefficient	1.0	1.6	1.6	1.4	1.4	1.8	1.8	0.75	0.75	0.75	0.75
Description	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve	SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve
End Type	Female National Pipe Thread (NPT)	-	-	-	-	-	-	Female National Pipe Thread (NPT)	-	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)
