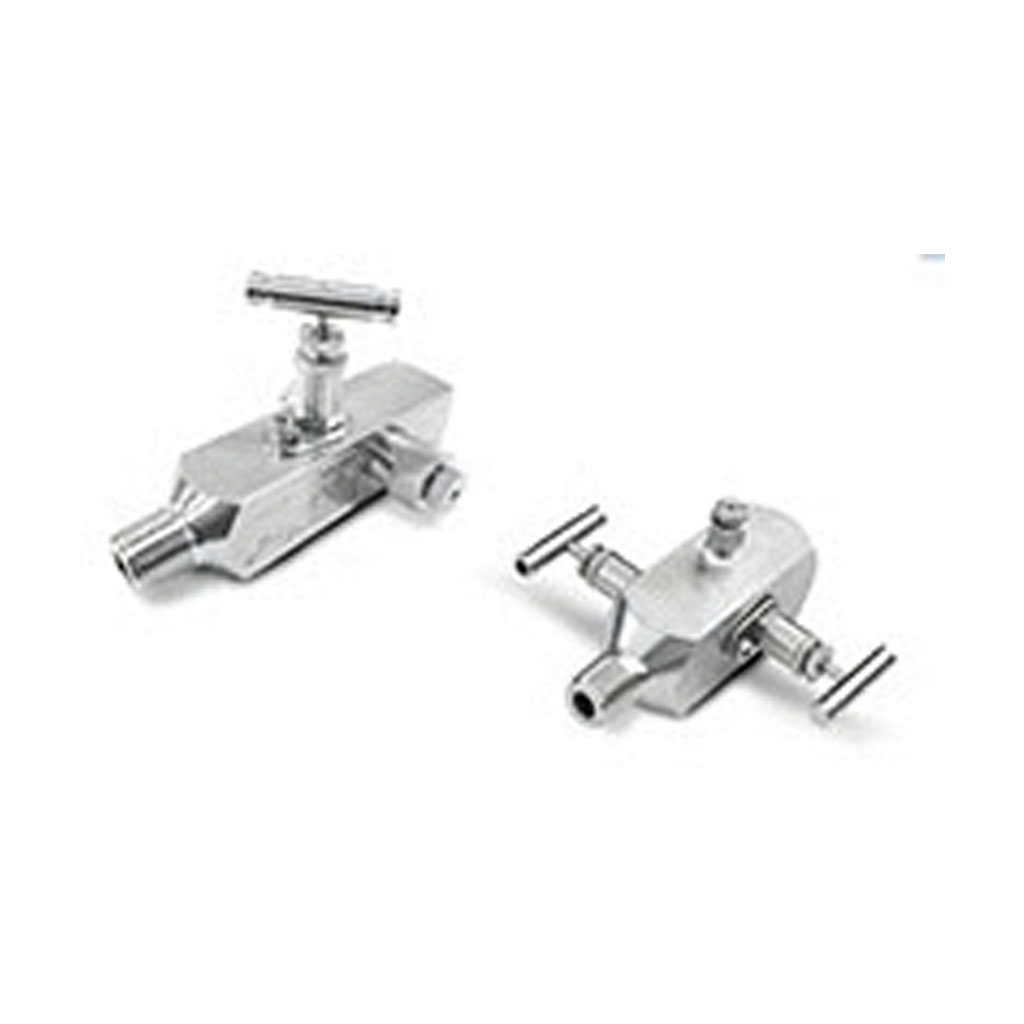

SGBV Gauge Bleed Valves

Stainless Steel construction 1/2 in. and 3/4 in, male to 1/2 in. female end connections 1/2 in. female gauge ports standard

SGBV Gauge Bleed Valves
SGBV Gauge Bleed Valves - 2
5 Items in SGBV Gauge Bleed Valves
Item # Item Name
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Working Pressure [Max] Process End Connection Size Gauge Bleed Valve
SGBV 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
side-scroll to see full table

Part# SGBV-MF-8N SGBV-MF-8N-G SGBV-MF-8N-MR SGBV-MF-12N-8N SGBV-MF-12N-8N
Information
Type
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Part Number
SGBV-MF-8N
SGBV-MF-8N-G
SGBV-MF-8N-MR
SGBV-MF-12N-8N
SGBV-MF-12N-8N

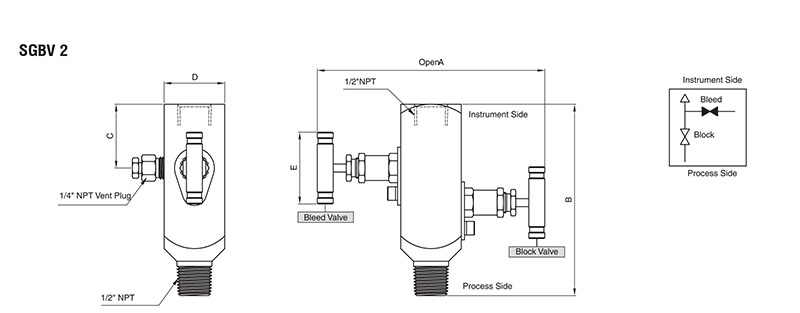

Dimensions
Dimension A
68.4mm
68.4mm
68.4mm
68.4mm
68.4mm
Dimension B
54.0mm
54.0mm
54.0mm
54.0mm
54.0mm
Dimension C
90.0mm
90.0mm
90.0mm
90.0mm
90.0mm
Dimension D
- mm
- mm
45.0mm
- mm
- mm
Dimension E
32.0mm
32.0mm
32.0mm
32.0mm
32.0mm
Dimension F
45.0mm
45.0mm
- mm
45.0mm
45.0mm
End Size
44198in
44198in
44198in
44259in
44259in
End Size 2
44198in
44198in
44198in
44198in
44198in
Operating Pressure [Max]
413bar
6000psig
413bar
6000psig
413bar
6000psig
413bar
6000psig
413bar
6000psig
Orifice
0.125in
3.2mm
0.125in
3.2mm
0.125; 0.250in
3.2; 6.4mm
0.125in
3.2mm
0.125in
3.2mm
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing
-54 to 232ºC
-65 to 450ºF
-54 to 232ºC
-65 to 450ºF
-54 to 232ºC
-65 to 450ºF
-54 to 232ºC
-65 to 450ºF
-54 to 232ºC
-65 to 450ºF
Specifications
End Type
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
End Type 2
Female National Pipe Thread (FNPT)
Female National Pipe Thread (FNPT)
Female National Pipe Thread (FNPT)
Female National Pipe Thread (FNPT)
Female National Pipe Thread (FNPT)
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Series
SGBV
SGBV
SGBV
SGBV
SGBV
Description
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Working Pressure [Max] Process End Connection Size Gauge Bleed Valve
SGBV 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
SGBV 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Working Pressure [Max] Gauge Bleed Valve
Material
316 Stainless Steel
316 Stainless Steel
-
316 Stainless Steel
316 Stainless Steel

Part#

CAD Download Part #

Please submit the form below and your download will begin immediately. (All fields are required)
