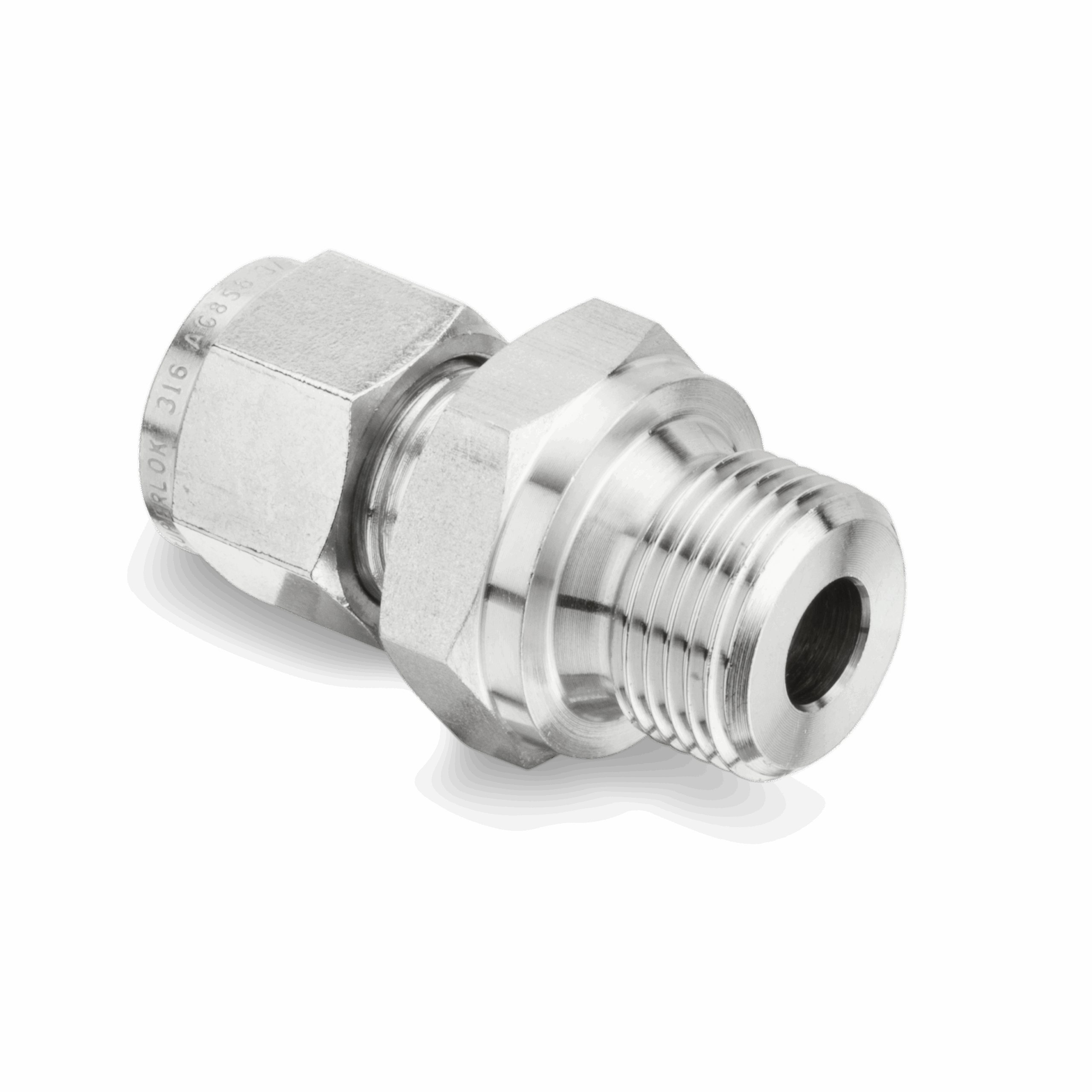

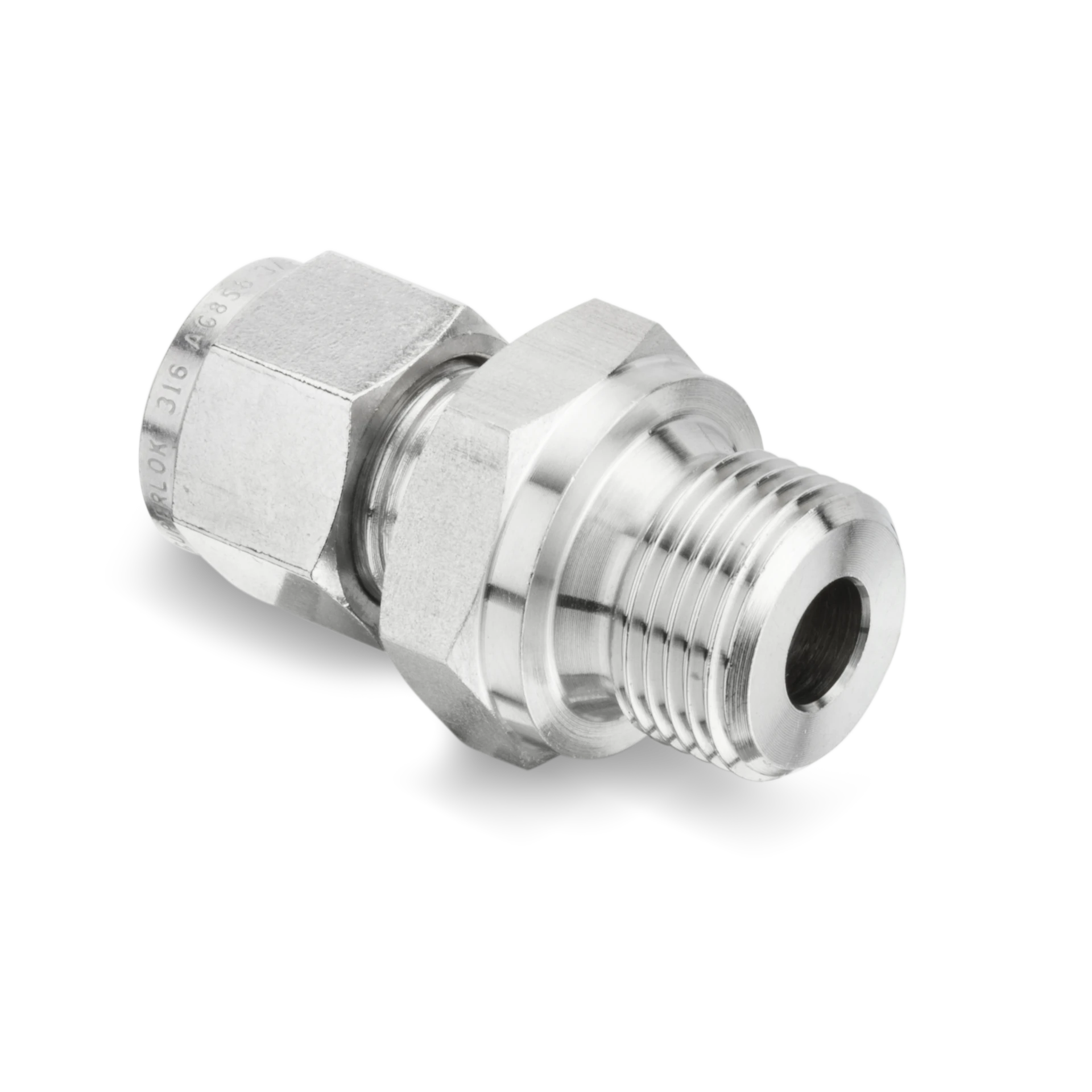

SGMC Male Connectors
Downloads
1 Items in SGMC Male Connectors
side-scroll to see full table
|
|
| Part# | SGMC 16M-8G |
| Information | |
| Part Number |
SGMC 16M-8G
|
| Type |
Male Connector
|

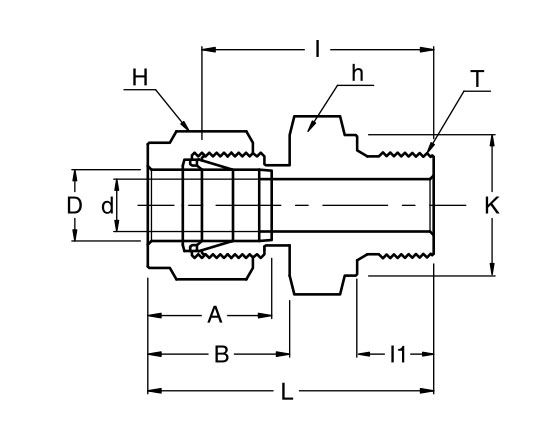

| Dimensions | |
| Dimension A |
24.4mm
|
| Dimension B |
22.0mm
|
| Dimension I |
38.9mm
|
| Dimension I1 |
14.0mm
|
| Dimension K |
26.0mm
|
| Dimension L |
49.0mm
|
| Dimension d [Min] |
11.9mm
|
| End Size |
44198in
|
| Tube Outside Diameter D |
16mm
|
| Width Across Flats H |
25mm
|
| Width Across Flats h |
27.0mm
|
| Specifications | |
| Description |
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
|
| Inch/Metric |
Metric
|
| Material |
316 Stainless Steel
|
