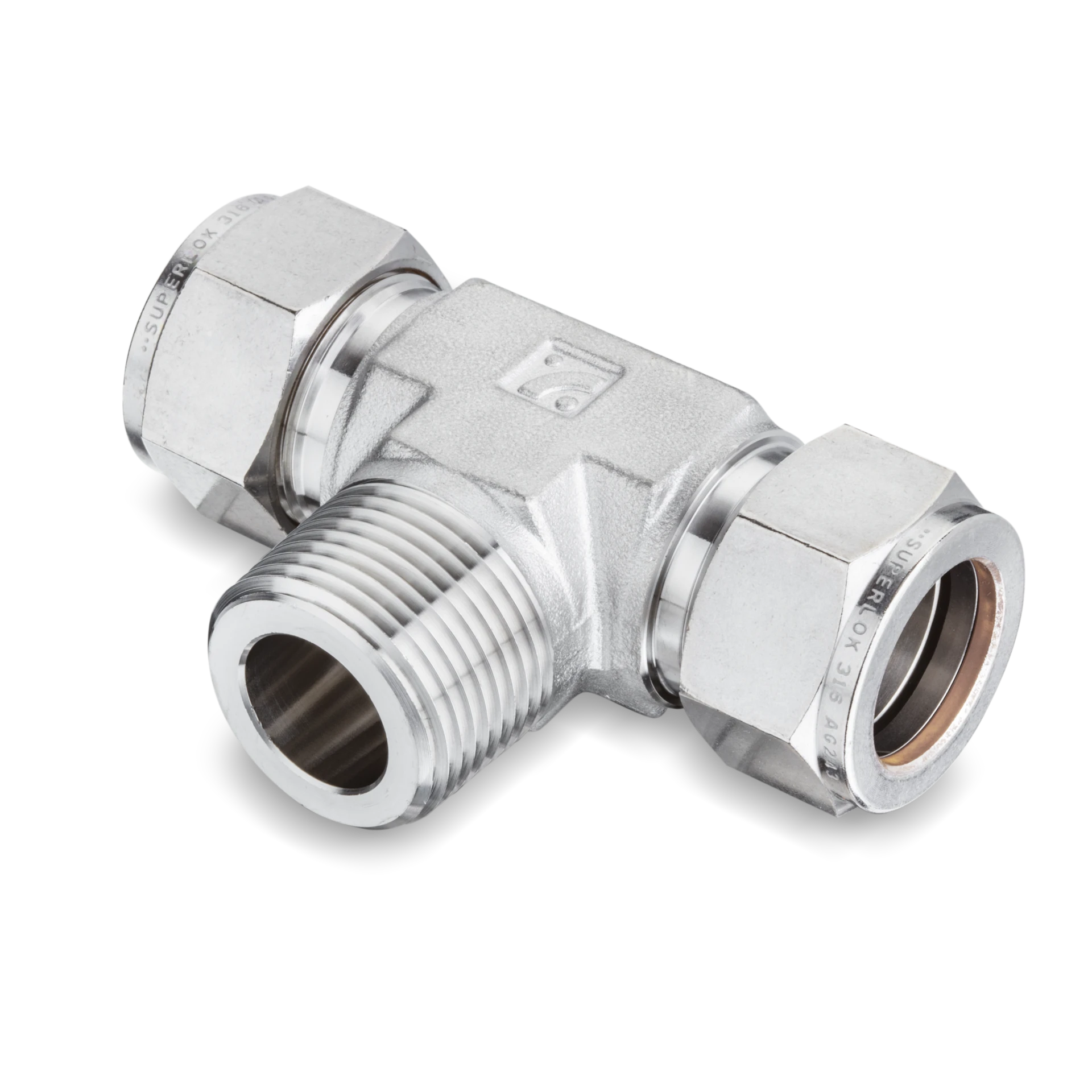

SMBT Male Branch Tees

side-scroll to see full table

Information

Part#	SMBT 2-2N	SMBT 2-4N	SMBT 4-2N	SMBT 4-4N	SMBT 6-4N	SMBT 6-6N	SMBT 8-4N	SMBT 8-6N	SMBT 8-8N	SMBT 10-8N	SMBT 10-8N
Type	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee	Male Tee
Part Number	SMBT 2-2N	SMBT 2-4N	SMBT 4-2N	SMBT 4-4N	SMBT 6-4N	SMBT 6-6N	-	SMBT 8-6N	SMBT 8-8N	SMBT 10-8N	SMBT 10-8N
Dimensions
Dimension A	12.70mm	12.70mm	15.24mm	15.24mm	16.76mm	16.76mm	-	22.86mm	22.86mm	24.38mm	24.38mm
Dimension B	15.24mm	15.24mm	17.78mm	17.78mm	19.30mm	19.30mm	-	21.84mm	21.84mm	21.84mm	21.84mm
Dimension I	18.30mm	18.03mm	19.55mm	19.55mm	23.11mm	23.10mm	-	25.90mm	25.90mm	28.70mm	28.70mm
Dimension L	24.91mm	24.63mm	26.92mm	26.92mm	30.48mm	30.48mm	-	36.06mm	36.06mm	38.86mm	38.86mm
Dimension L1	18.90mm	23.36mm	18.79mm	23.36mm	25.40mm	28.19mm	-	28.19mm	33.02mm	35.81mm	35.81mm
Dimension d [Min]	2.28mm	2.28mm	4.82mm	4.82mm	7.11mm	7.11mm	-	9.65mm	10.41mm	11.93mm	11.93mm
End Size	44204in	44200in	44204in	44200in	44200in	44263in	-	44263in	44198in	44198in	44198in
Tube Outside Diameter D	1/8in	1/8in	1/4in	1/4in	3/8in	3/8in	-	1/2in	1/2in	5/8in	5/8in
Width Across Flats H	7/16in	7/16in	9/16in	9/16in	11/16in	11/16in	-	7/8in	7/8in	-	-
Width Across Flats h	1/2in	1/2in	1/2in	1/2in	5/8in	5/8in	-	13/16in	13/16in	1in	1in
Specifications
End Type	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)	National Pipe Thread (NPT)
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1	American National Standards Institute (ANSI) B1.20.1
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Description	SMBT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/2 in. Tube Outside Diameter x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/2 in. Tube Outside Diameter x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee

	Item #	Item Name
	SMBT 2-2N SMBT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 2-4N SMBT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 4-2N SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 4-4N SMBT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 6-4N SMBT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 6-6N SMBT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 8-4N
	SMBT 8-6N SMBT 1/2 in. Tube Outside Diameter x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/2 in. Tube Outside Diameter x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 8-8N SMBT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 10-8N SMBT 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
	SMBT 12-12N SMBT 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee	SMBT 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
