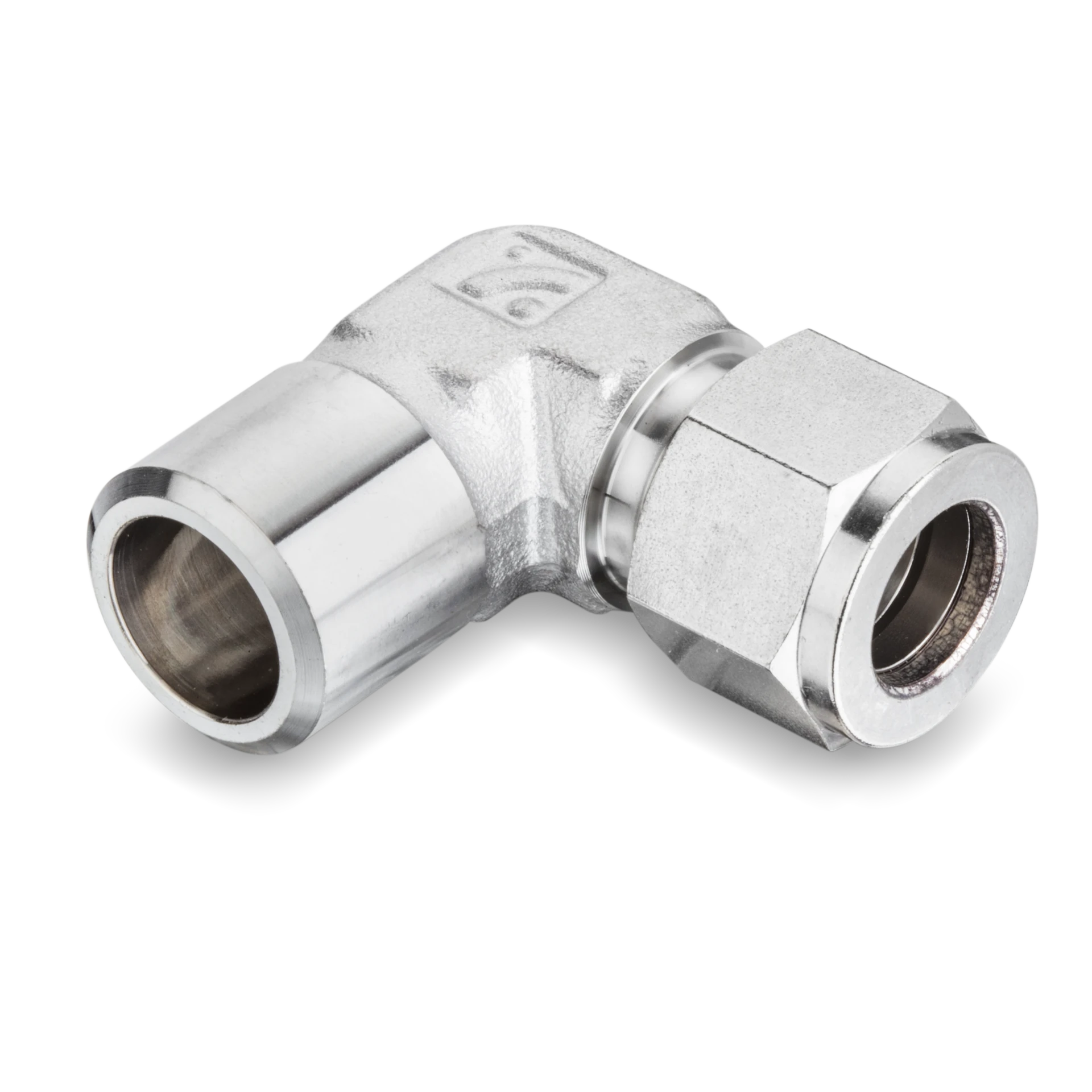

SMPWE Male Pipe Weld Elbows

SMPWE TUBE FITTING
SMPWE Male Pipe Weld Elbows - 2
1 Items in SMPWE Male Pipe Weld Elbows
side-scroll to see full table

Part# SMPWE-8-8P
Information
Part Number
SMPWE-8-8P
Type
Weld Elbow

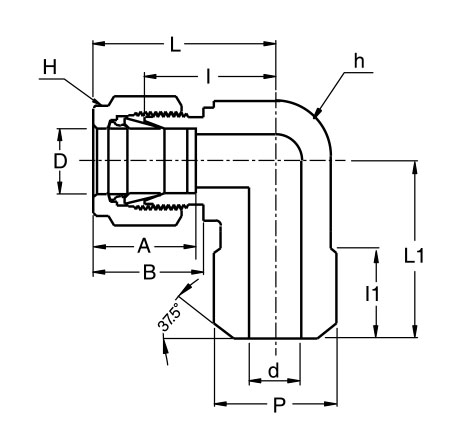

Dimensions
Angle
90º
Dimension A
22.86mm
Dimension B
21.84mm
Dimension I
25.90mm
Dimension I1
19.05mm
Dimension L
36.06mm
Dimension L1
33.02mm
Dimension d [Min]
10.41mm
Outside Diameter Pipe Size (P)
21.30mm
Size
44198mm
Tube Outside Diameter D
1/2in
Width Across Flats H
7/8in
Width Across Flats h
13/16in
Specifications
Description
SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
Inch/Metric
Inch
Material
316 Stainless Steel

Part#

CAD Download Part #
