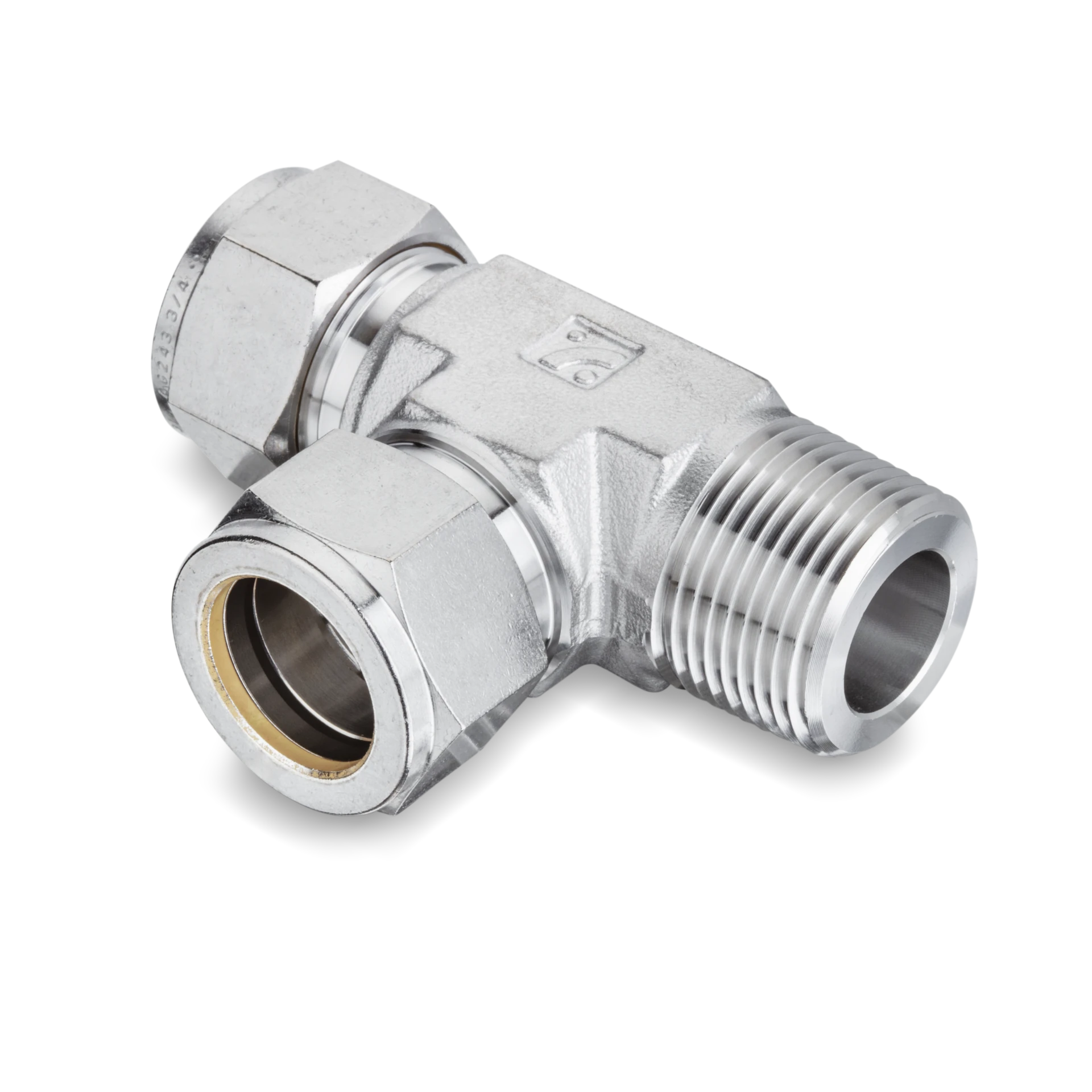

9 Items in SMRT Male Run Tees
Item # Item Name
SMRT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
side-scroll to see full table

Part# SMRT 2-2N SMRT 2-4N SMRT 4-2N SMRT 4-4N SMRT 6-4N SMRT 6-6N SMRT 8-6N SMRT 8-8N SMRT 8-8N
Information
Type
Male Tee
Male Tee
Male Tee
Male Tee
Male Tee
Male Tee
Male Tee
Male Tee
Male Tee
Part Number
SMRT 2-2N
SMRT 2-4N
SMRT 4-2N
SMRT 4-4N
SMRT 6-4N
SMRT 6-6N
SMRT 8-6N
SMRT 8-8N
SMRT 8-8N
Dimensions
Dimension A
12.70mm
12.70mm
15.24mm
15.24mm
16.76mm
16.76mm
22.86mm
22.86mm
22.86mm
Dimension B
15.24mm
15.24mm
17.78mm
17.78mm
19.30mm
19.30mm
21.84mm
21.84mm
21.84mm
Dimension I
18.30mm
18.03mm
19.55mm
19.55mm
23.11mm
23.10mm
25.90mm
25.90mm
25.90mm
Dimension L
24.91mm
24.63mm
26.92mm
26.92mm
30.48mm
30.48mm
36.06mm
36.06mm
36.06mm
Dimension L1
18.90mm
23.36mm
18.79mm
23.36mm
25.40mm
28.19mm
28.19mm
33.02mm
33.02mm
Dimension d [Min]
2.28mm
2.28mm
4.82mm
4.82mm
7.11mm
7.11mm
9.65mm
10.41mm
10.41mm
End Size
44204in
44200in
44204in
44200in
44200in
44263in
44263in
44198in
44198in
Tube Outside Diameter D
1/8in
1/8in
1/4in
1/4in
3/8in
3/8in
1/2in
1/2in
1/2in
Width Across Flats H
7/16in
7/16in
9/16in
9/16in
11/16in
11/16in
7/8in
7/8in
7/8in
Width Across Flats h
1/2in
1/2in
1/2in
1/2in
5/8in
5/8in
13/16in
13/16in
13/16in
Specifications
End Type
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Female National Pipe Thread (NPT)
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Industry Standards/Certifications
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
American National Standards Institute (ANSI) B1.20.1
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
SMRT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
SMRT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
