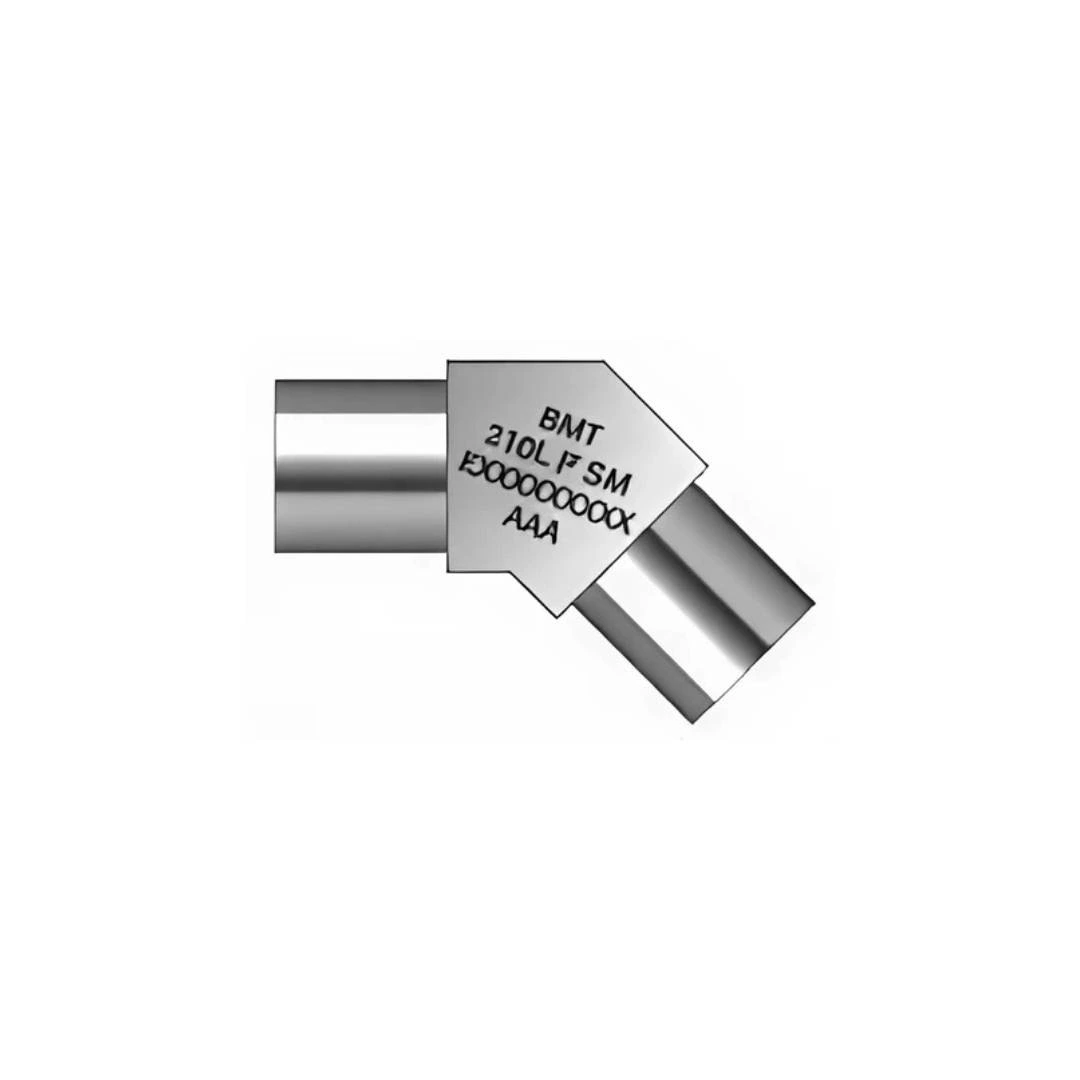

UHP Micro 45° Elbow
The SM2HE6 is a compact 45° elbow for 1/8″ O.D. tubing, made from 316 Stainless Steel with a single corrosion-resistant alloy layer. Designed for high-pressure fluid systems, it ensures precise fluid control in industrial settings. The polished finish supports clean in place processes, perfect for tight spaces.
Ideal for microelectronics and gas sampling, it offers durability and strength. The 316 Stainless Steel resists corrosive gases, thermal changes, and harsh cleanings, ensuring reliability. It integrates with standard fittings, minimizing contamination in high-purity gas setups.
Easy to install, the polished surface reduces fouling and simplifies maintenance. The SM2HE6 holds a secure seal under pressure, aiding quick assembly in OEM fluid systems. Its design suits modular process lines, delivering consistent angles. This elbow boosts efficiency by reducing downtime. Compatible with industrial valves, it serves high-pressure fluid networks. For a 1/8″ 45° elbow, it’s a smart pick.
Key Benefits
- Tight Angle: Ensures leak-free 45° turns
- Strong Build: Resists wear and harsh conditions
- Clean Design: Supports clean in place processes
- Low Maintenance: Easy to clean and install
- Steady Flow: Enhances precise fluid control
Typical Applications
- Clean in place instrumentation (CIP)
- Precision pressure networks
- Industrial gas setups
- OEM fluid assemblies
Trust the SM2HE6 to provide exceptional precision and durability for your high-pressure microelectronic gas systems, ensuring flawless operation with every angle.
