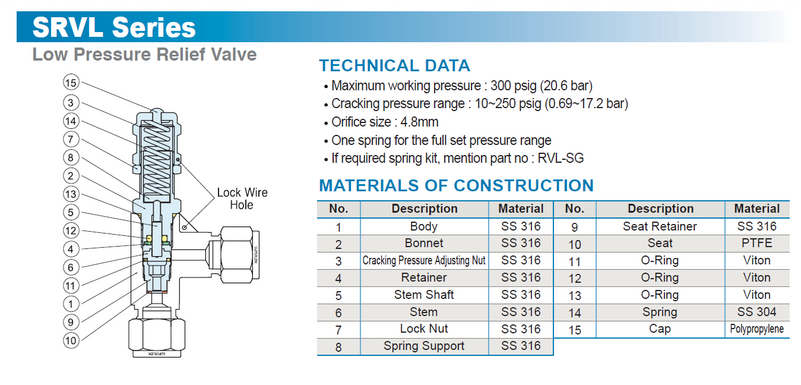

SRVL-S-4
SRVL-S-6
SRVL-S-6-N
SRVL-S-8
SRVL-MS-4N-4
SRVL-MF-4N
SRVL-MF-4N-N
SRVL-MF-4N-KZ
SRVL-MF-8N
SRVL-MF-8N-N
Superlok Part Number

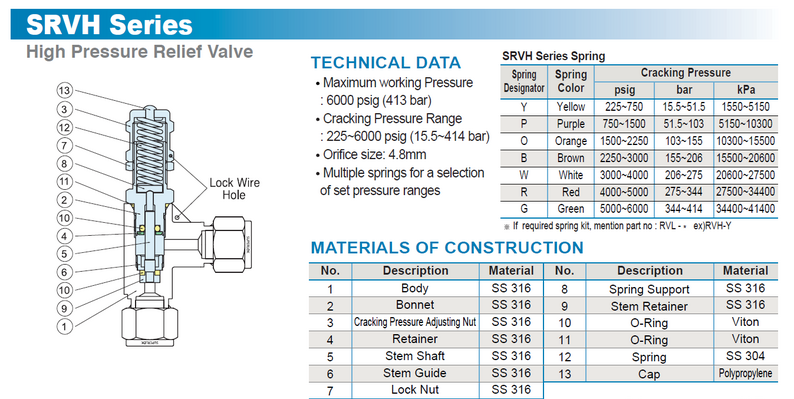

SRVH-S-4
SRVH-S-4-E
SRVH-S-4-G (GREEN SPRING)
SRVH-S-4-Y (YELLOW SPRING)
SRVH-S-4-N
SRVH-S-6
SRVH-S-6-N
SRVH-S-8
SRVH-S-8-N
SRVHMS-4N-4
SRVHMS-8N-8
SRVHMF-4N
SRVHMF-4N-N
SRVHMF-4N-KZ
SRVHMF-6N
SRVHMF-8N
SRVHMF-8N-N
SRVH-KIT-Y
SRVH-KIT-P
SRVH-KIT-O
SRVH-KIT-B
SRVH-KIT-W
SRVH-KIT-R
SRVH-KIT-G

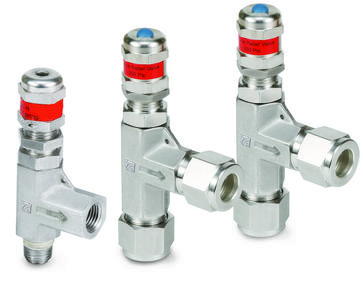

Angle pattern
Stainless steel construction
Pressure setting are externally adjustable while the valve is in operation
Lock wire feature secures a given pressure setting
SPECIFICATIONS
Maximum Working Pressure:
SRVL – 300psi (21 bar) @ 100°F (38°C)
SRVH – 6000psi (414 bar) @ 100°F (38°C)
Working Temperature Range:
10°F to 400°F (- 23°C to 204°C)
Opening Pressure:
SRVL : 10psi (0.69 bar) to 250psi (17.2bar)
SRVH : 225psi (15.5 bar) to 6000psi (414 bar)
