Item# IA-16G-16N

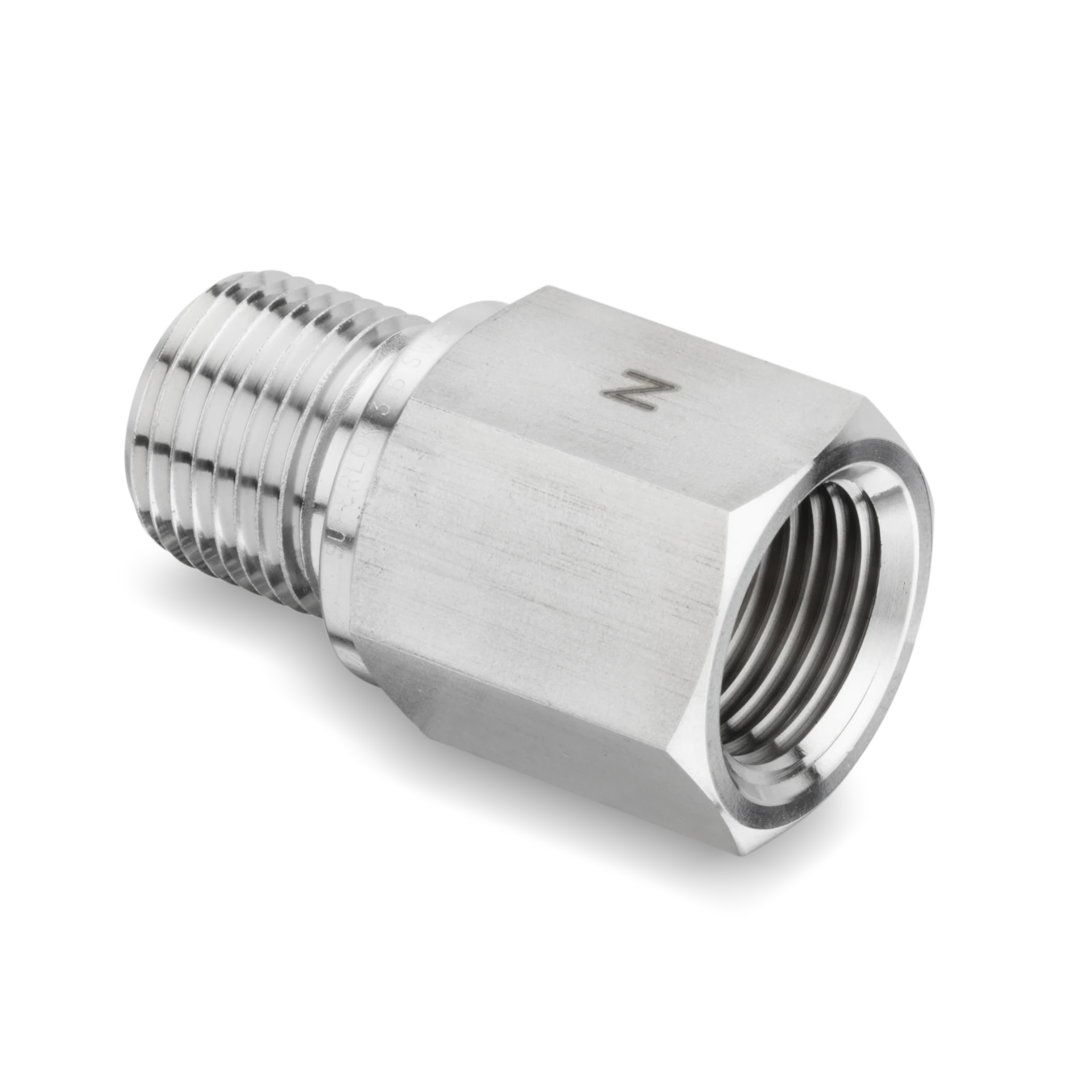

IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
Downloads
Specifications
Part Number
IA-16G-16N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter

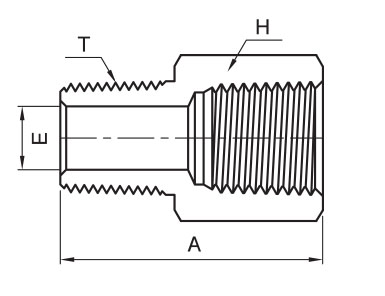

Dimensions
(ISO)/(BSP) Pipe Size
1 mm
Dimension A
53.3 mm
Dimension B
18.3 mm
Dimension C
38.9 mm
Dimension E
19.8 mm
Dimension H
41.2 mm
Pressure [Max]
4400 bar
303 psig
Size
1 in
