Item# IBT-8N

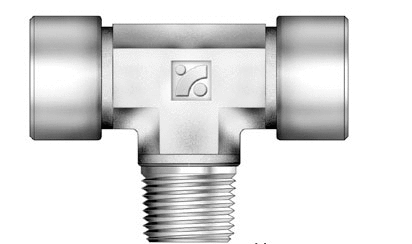

IBT 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee

IBT-8N
IBT PIPE FITTING
IBT Branch Tees - 2
Specifications
Part Number
IBT-8N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IBT 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
Size
44198
Dimensions
Dimension A
74.0 mm
Dimension E
11.9 mm
Dimension H
25.4 mm
Dimension L
37.0 mm
Dimension S
35.3 mm
Pressure Rating (Brass)
192 bar
2800 psig
Pressure [Max]
385 bar
5600 psig
