6 Items in IBT Branch Tees
side-scroll to see full table

Part# IBT-2N IBT-4N IBT-6N IBT-8N IBT-12N IBT-12N
Information
Type
Branch Tee
Branch Tee
Branch Tee
Branch Tee
Branch Tee
Branch Tee
Part Number
IBT-2N
IBT-4N
IBT-6N
IBT-8N
IBT-12N
IBT-12N

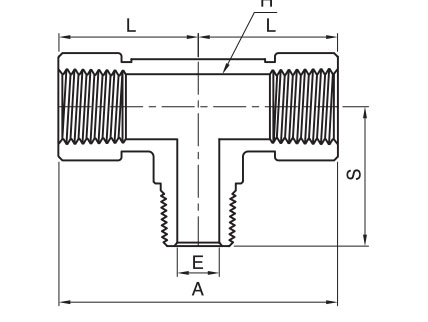

Dimensions
Dimension A
48.0mm
58.0mm
69.0mm
74.0mm
93.0mm
93.0mm
Dimension E
4.8mm
7.1mm
9.6mm
11.9mm
15.7mm
15.7mm
Dimension H
12.7mm
17.5mm
20.6mm
25.4mm
31.8mm
31.8mm
Dimension L
24.0mm
29.0mm
34.5mm
37.0mm
46.5mm
46.5mm
Dimension S
19.6mm
26.5mm
28.2mm
35.3mm
39.6mm
39.6mm
Pressure Rating (Brass)
213bar
3100psig
248bar
3600psig
192bar
2800psig
192bar
2800psig
172bar
2500psig
172bar
2500psig
Pressure [Max]
427bar
6200psig
496bar
7200psig
385bar
5600psig
385bar
5600psig
351bar
5100psig
351bar
5100psig
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
Description

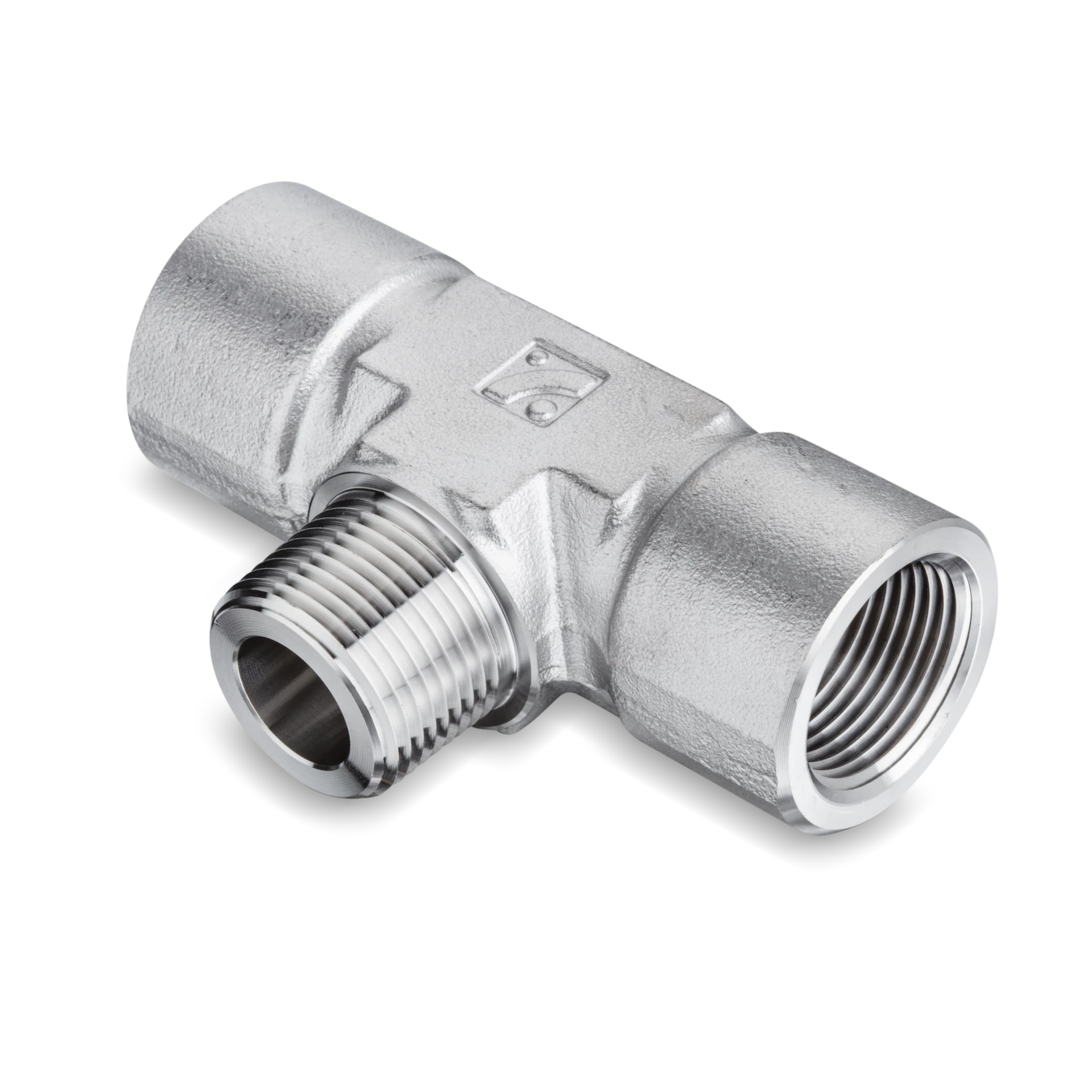

IBT 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT 3/8 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
Size
44204
44200
44263
44198
44259
44259

Part#

CAD Download Part #
