Item# IFT-4N

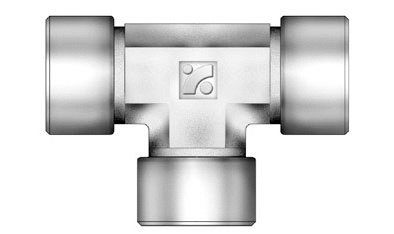

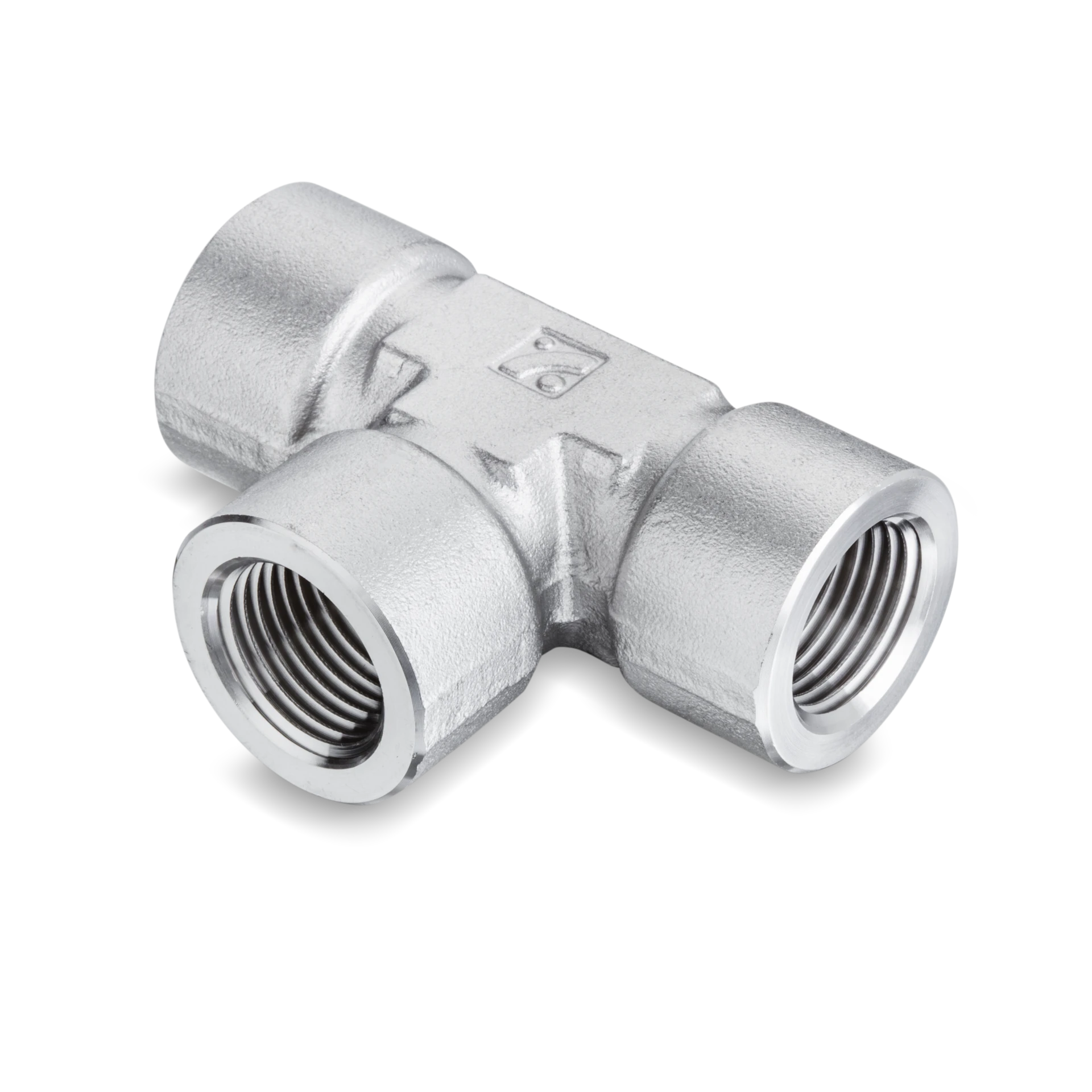

IFT 1/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee

Downloads
IFT-4N
IFT PIPE FITTING (1)
IFT Female Tees - 2
Specifications
Part Number
IFT-4N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IFT 1/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee
Size
44200

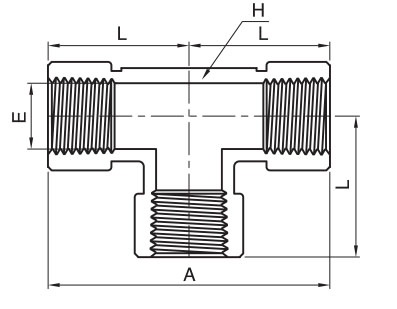

Dimensions
Dimension A
58.0 mm
Dimension E
11.4 mm
Dimension H
17.5 mm
Dimension L
29.0 mm
Pressure Rating (Brass)
248 bar
3600 psig
Pressure [Max]
496 bar
7200 psig
