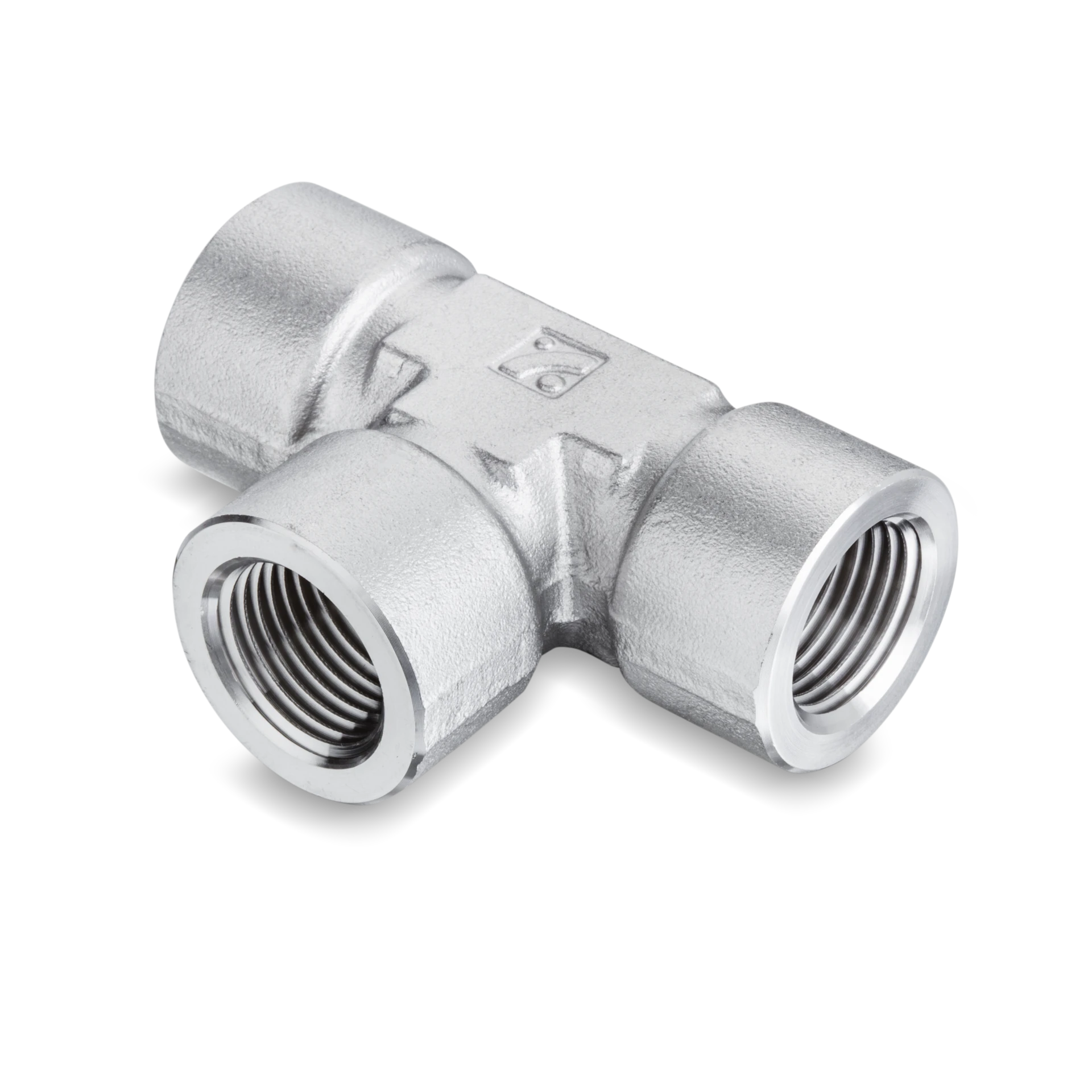

IFT Female Tees
6 Items in IFT Female Tees
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IFT-2N | IFT-4N | IFT-6N | IFT-8N | IFT-12N | IFT-12N |
| Information | ||||||
| Type |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
| Part Number |
IFT-2N |
IFT-4N |
IFT-6N |
IFT-8N |
IFT-12N |
IFT-12N |
| Dimensions | ||||||
| Dimension A |
48.0mm |
58.0mm |
69.0mm |
74.0mm |
93.0mm |
93.0mm |
| Dimension E |
8.6mm |
11.4mm |
15.0mm |
18.5mm |
23.9mm |
23.9mm |
| Dimension H |
12.7mm |
17.5mm |
20.6mm |
25.4mm |
31.8mm |
31.8mm |
| Dimension L |
24.0mm |
29.0mm |
34.5mm |
37.0mm |
46.5mm |
46.5mm |
| Pressure Rating (Brass) |
213bar
3100psig |
248bar
3600psig |
192bar
2800psig |
192bar
2800psig |
172bar
2500psig |
172bar
2500psig |
| Pressure [Max] |
427bar
6200psig |
496bar
7200psig |
385bar
5600psig |
385bar
5100psig |
351bar
6400psig |
351bar
6400psig |
| Specifications | ||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
| Description |
IFT 1/8 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
IFT 1/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
IFT 3/8 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
IFT 1/2 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
IFT 3/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
IFT 3/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
| Size |
44204 |
44200 |
44263 |
44198 |
44259 |
44259 |
