Item# IHN-12N-12G

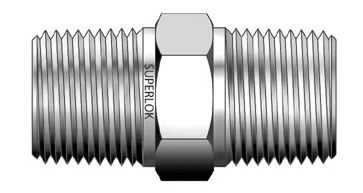

IHN 3/4 in. Male National Pipe Taper (MNPT) x 3/4 in. Male International Organization of Standardization (ISO) Parallel Pipe Size Hex Nipple
Downloads
Specifications
Part Number
IHN-12N-12G
Brand
Superlok®
End Type
Male National Pipe Thread (MNPT)
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IHN 3/4 in. Male National Pipe Taper (MNPT) x 3/4 in. Male International Organization of Standardization (ISO) Parallel Pipe Size Hex Nipple
Dimensions
(ISO)/(BSP) Pipe Size
3/4 mm
Dimension A
49.0 mm
Dimension B
15.7 mm
Dimension C
32.0 mm
Dimension E
15.7 mm
Dimension H
33.3 mm
Pressure Rating for Brass Nipple
248 bar
3600 psig
Pressure [Max]
502 bar
7300 psig
Size
44259 mm
