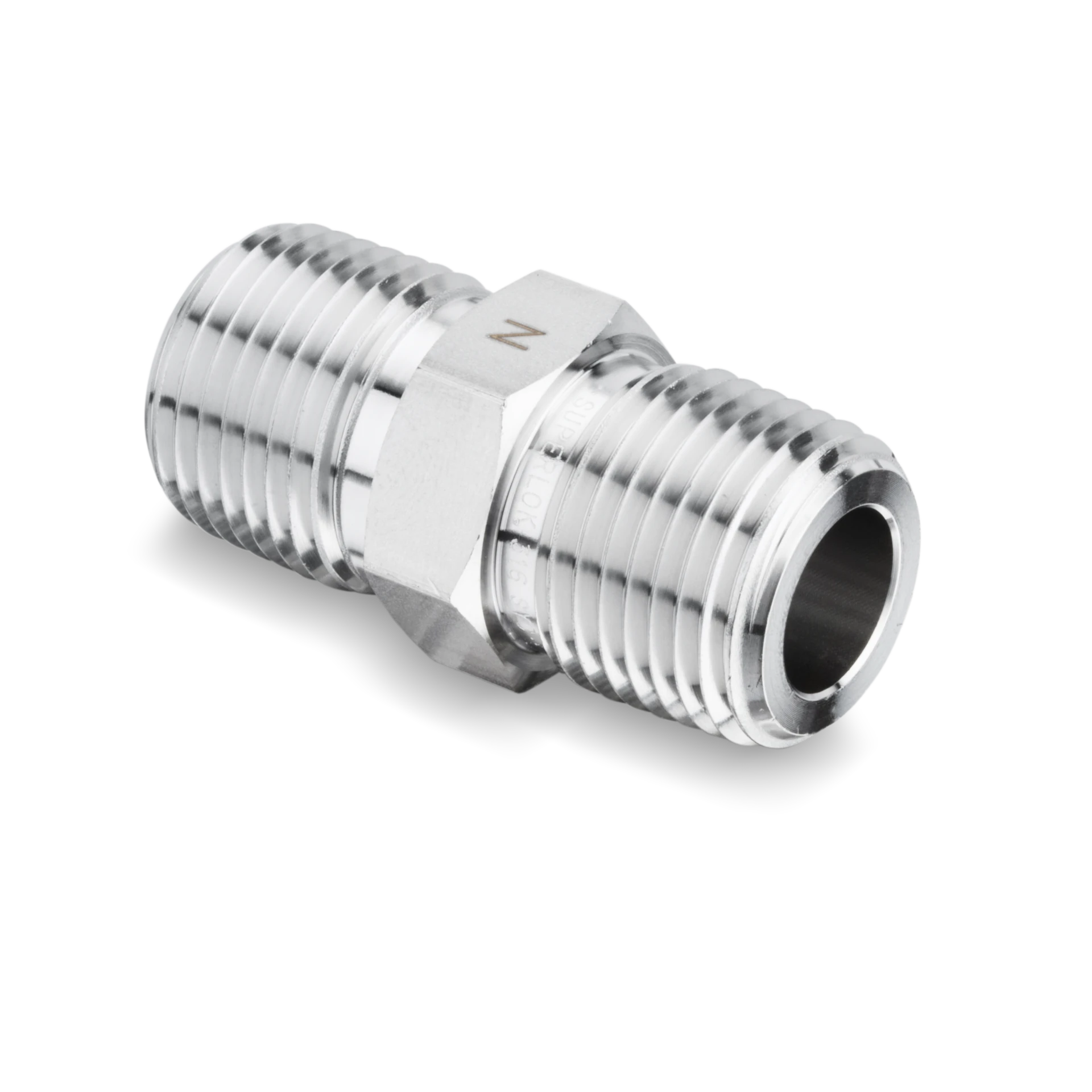

IHN Hex Nipples
8 Items in IHN Hex Nipples
side-scroll to see full table
|
|
|
|
|
|
|
|
|
| Part# | IHN-2N | IHN-4N | IHN-6N | IHN-8N | IHN-8N-8G | IHN-12N | IHN-12N-12G | IHN-12N-12G |
| Information | ||||||||
| Type |
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
Hex Nipple
|
| Part Number |
IHN-2N
|
IHN-4N
|
IHN-6N
|
IHN-8N
|
IHN-8N-8G
|
IHN-12N
|
IHN-12N-12G
|
IHN-12N-12G
|
| Dimensions | ||||||||
| (ISO)/(BSP) Pipe Size |
- mm
|
- mm
|
- mm
|
- mm
|
1/2mm
|
- mm
|
3/4mm
|
3/4mm
|
| Dimension A |
25.6mm
|
35.6mm
|
36.3mm
|
46.7mm
|
44.4mm
|
46.7mm
|
49.0mm
|
49.0mm
|
| Dimension B |
- mm
|
- mm
|
- mm
|
- mm
|
14.2mm
|
- mm
|
15.7mm
|
15.7mm
|
| Dimension C |
- mm
|
- mm
|
- mm
|
- mm
|
25.9mm
|
- mm
|
32.0mm
|
32.0mm
|
| Dimension E |
4.8mm
|
7.1mm
|
9.6mm
|
11.9mm
|
11.9mm
|
15.7mm
|
15.7mm
|
15.7mm
|
| Dimension H |
11.1mm
|
14.2mm
|
17.4mm
|
22.2mm
|
26.9mm
|
26.9mm
|
33.3mm
|
33.3mm
|
| Pressure Rating for Brass Nipple |
344bar
5000psig
|
275bar
4000psig
|
268bar
3900psig
|
261bar
3800psig
|
261bar
3800psig
|
248bar
3600psig
|
248bar
3600psig
|
248bar
3600psig
|
| Pressure [Max] |
689bar
10000psig
|
551bar
8000psig
|
537bar
7800psig
|
530bar
7700psig
|
523bar
7600psig
|
502bar
7300psig
|
502bar
7300psig
|
502bar
7300psig
|
| Size |
44204mm
|
44200mm
|
44263mm
|
44198mm
|
44198mm
|
44259mm
|
44259mm
|
44259mm
|
| Specifications | ||||||||
| End Type |
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
| Description |
IHN 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
|
IHN 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
|
IHN 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
|
IHN 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
|
IHN 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Male International Organization of Standardization (ISO) Parallel Pipe Size Hex Nipple
|
IHN 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
|
IHN 3/4 in. Male National Pipe Taper (MNPT) x 3/4 in. Male International Organization of Standardization (ISO) Parallel Pipe Size Hex Nipple
|
IHN 3/4 in. Male National Pipe Taper (MNPT) x 3/4 in. Male International Organization of Standardization (ISO) Parallel Pipe Size Hex Nipple
|
