Item# IRHB 12-8N

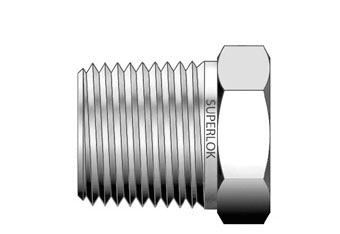

IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing

Downloads
IRHB 12-8N
IHRB PIPE FITTING
IRHB Reducing Hex Bushings - 2
Specifications
Part Number
IRHB 12-8N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing

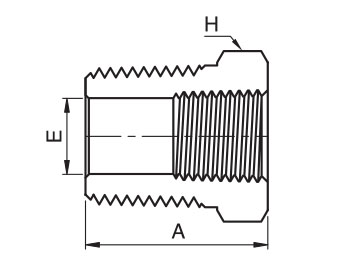

Dimensions
Dimension A
41.4 mm
Dimension E
15.7 mm
Dimension H
26.9 mm
Female Pipe Size
1/2 mm
Pressure Rating (Brass)
296 bar
4300 psig
Pressure [Max]
337 bar
4900 psig
Size
44259 mm
