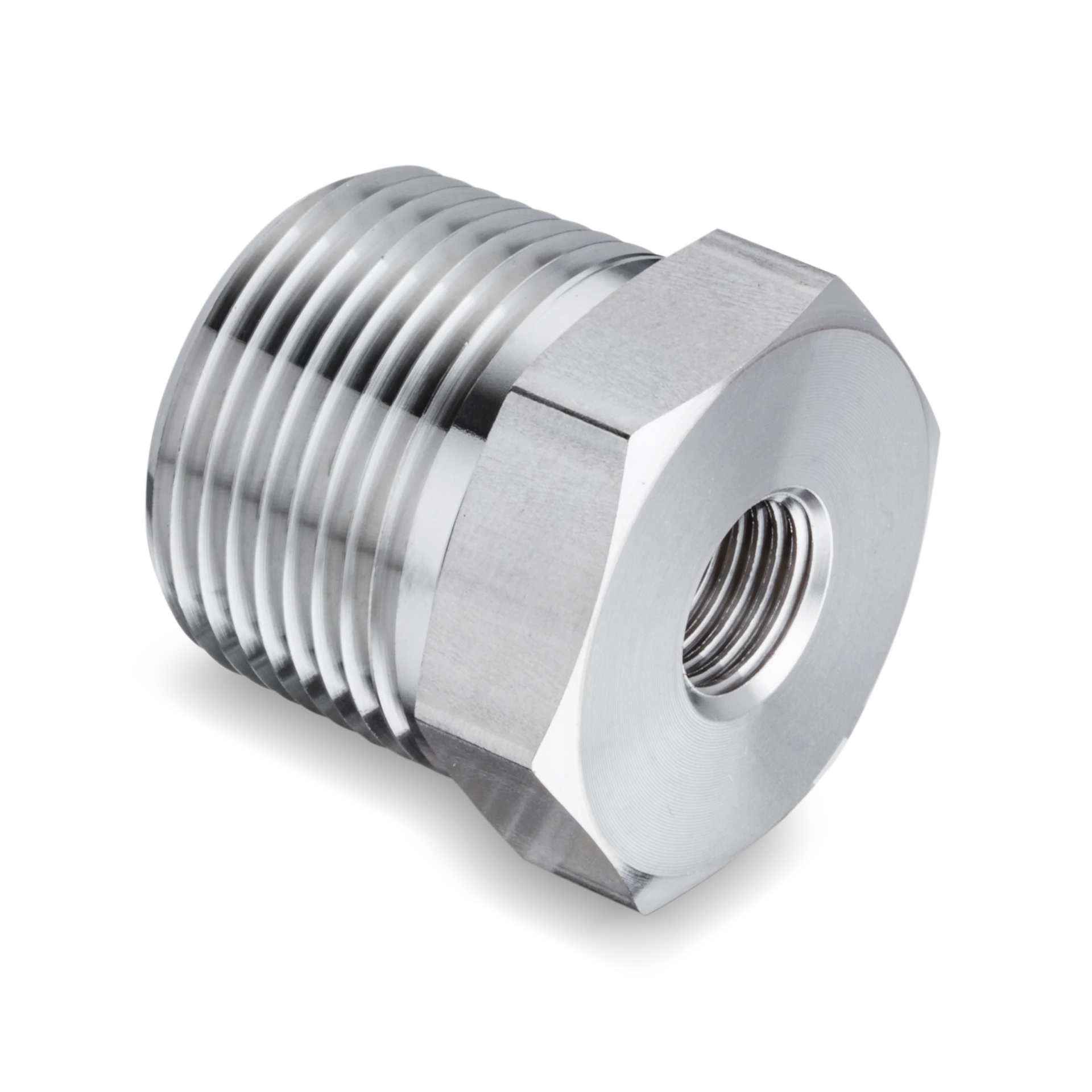

IRHB Reducing Hex Bushings

IHRB PIPE FITTING
IRHB Reducing Hex Bushings - 2
13 Items in IRHB Reducing Hex Bushings
Item # Item Name
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
side-scroll to see full table

Part# IRHB-16-8N IRHB-16-12N IRHB 4-2N IRHB 6-2N IRHB 6-4N IRHB 8-2N IRHB 8-4N IRHB 8-6N IRHB 12-4N IRHB 12-6N IRHB 12-8N IRHB 16-4N IRHB 16-4N
Information
Type
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Hex Bushing
Part Number
IRHB-16-8N
IRHB-16-12N
IRHB 4-2N
IRHB 6-2N
IRHB 6-4N
IRHB 8-2N
IRHB 8-4N
IRHB 8-6N
IRHB 12-4N
IRHB 12-6N
IRHB 12-8N
IRHB 16-4N
IRHB 16-4N
Dimensions
Dimension A
34.8mm
47.0mm
26.9mm
21.8mm
30.2mm
27.4mm
27.4mm
35.8mm
27.4mm
27.4mm
41.4mm
34.8mm
34.8mm
Dimension E
18.5mm
22.4mm
7.1mm
8.6mm
9.6mm
8.6mm
11.4mm
11.9mm
11.4mm
15.0mm
15.7mm
11.4mm
11.4mm
Dimension H
34.9mm
34.9mm
14.2mm
17.4mm
19.1mm
22.2mm
22.2mm
22.2mm
26.9mm
26.9mm
26.9mm
34.9mm
34.9mm
Female Pipe Size
1/2mm
3/4mm
1/8mm
1/8mm
1/4mm
1/8mm
1/4mm
3/8mm
1/4mm
3/8mm
1/2mm
1/4mm
1/4mm
Pressure Rating (Brass)
406bar
5900psig
296bar
4300psig
227bar
3300psig
227bar
3300psig
323bar
4700psig
227bar
3300psig
427bar
6200psig
303bar
4400psig
179bar
2600psig
413bar
6000psig
296bar
4300psig
165bar
2400psig
165bar
2400psig
Pressure [Max]
592bar
8600psig
365bar
5300psig
447bar
6500psig
633bar
9200psig
454bar
6600psig
840bar
12200psig
571bar
8300psig
365bar
5300psig
826bar
12000psig
564bar
8200psig
337bar
4900psig
999bar
14500psig
999bar
14500psig
Size
1mm
1mm
44200mm
44263mm
44263mm
44198mm
44198mm
44198mm
44259mm
44259mm
44259mm
1mm
1mm
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1/2 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 3/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing
IRHB 1 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Hex Bushing

Part#

CAD Download Part #

Please submit the form below and your download will begin immediately. (All fields are required)
